Ships within 19 days
Dimension d
Model No
View
View
View
View

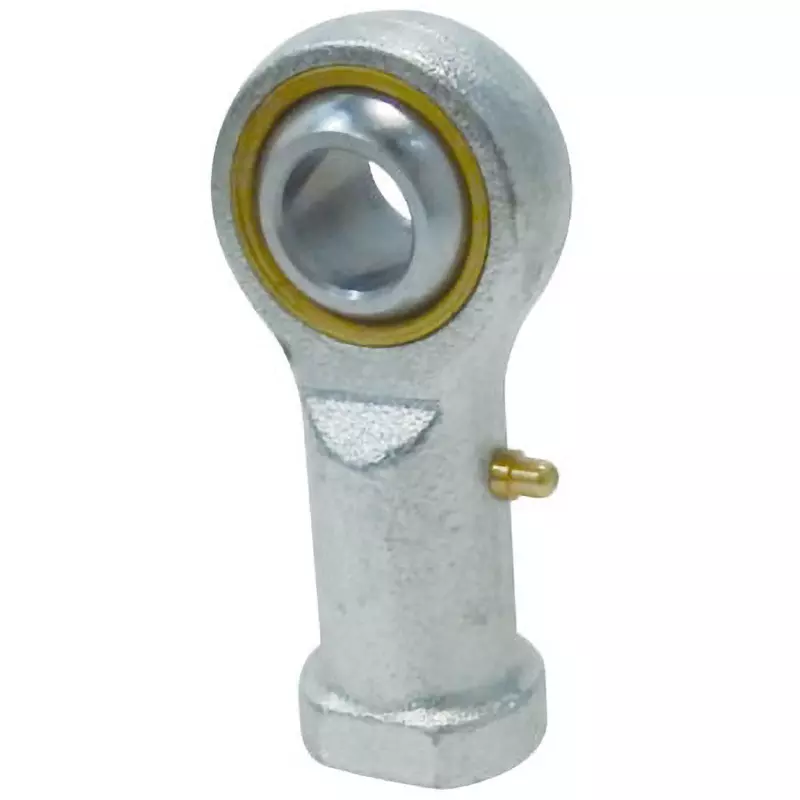

| Type of Product | Rod End |
| Model No | PHS12L |
| Thread Type | Female Left-Hand Thread Type |
| Material | Holder: S35C (colored chromate treatment) <br> Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating) <br> Bush: Special copper alloy |
Type of Product |
Rod End |
Model No |
PHS12L |
Thread Type |
Female Left-Hand Thread Type |
Material |
Holder: S35C (colored chromate treatment) <br> Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating) <br> Bush: Special copper alloy |
Country of Origin |
Japan |
Type |
PHS Type |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6334946 |
Mass (g) |
107 |

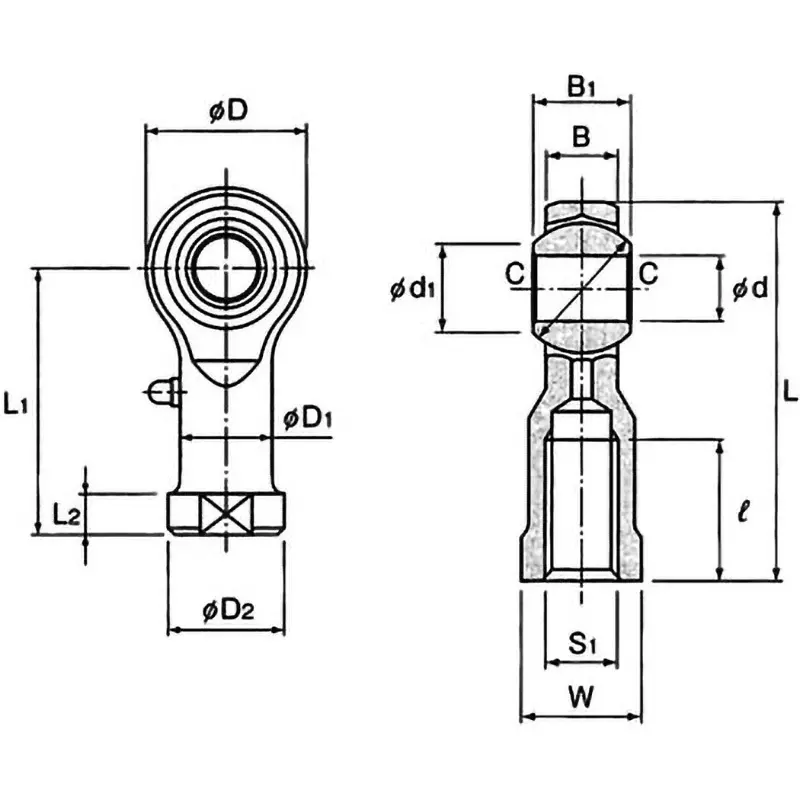

Dimension d2 (Φmm) |
22 |
Dimension d1 (Φmm) |
17.5 |
Dimension L (mm) |
65 |
Dimension L1 |
50 mm |
Dimension S1 (mm) |
M12x1.75 |
Dimension L2 |
6.5 mm |
JIS Class |
JIS Class 2 |
Dimension W |
19 mm |
Dimension S |
M12x1.75 mm |
RoHS Directive |
Correspondence |
Width B1 (mm) |
16 |
Dimension C |
0.5 mm |
Dimension D1 (mm) |
15.4 |
Dimension d |
12 mm |
3 options, 3 price levels
Volume discounts
Price locked 30 days
