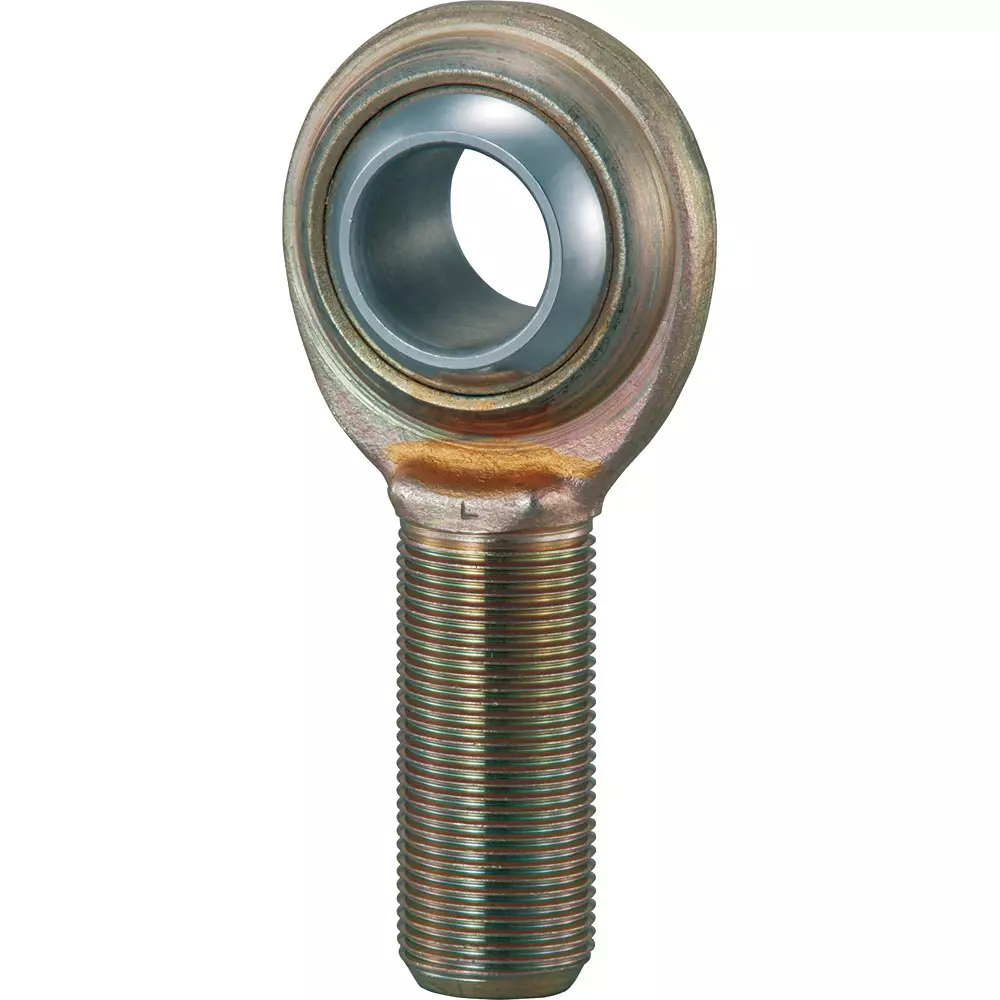

| Type of Product | Rod End |
| Model No | NOS4TL |
| Thread Type | Male Left-Hand Thread Type |
| Material | Holder: S20C (chromate treatment) Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating, but inner ring inner diameter is not treated) Bush: Self-lubricating synthetic resin |
Type of Product |
Rod End |
Model No |
NOS4TL |
Thread Type |
Male Left-Hand Thread Type |
Material |
Holder: S20C (chromate treatment) Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating, but inner ring inner diameter is not treated) Bush: Self-lubricating synthetic resin |
Country of Origin |
Japan |
Type |
Oil-Free |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6335637 |
Mass (g) |
7 |
Dimension B (Φmm) |
5.3 |
Dimension L (mm) |
37 |
Dimension L1 |
30 mm |
Dimension L2 |
17 mm |
JIS Class |
JIS Class 2 |
Dimension S |
M4x0.7 mm |
RoHS Directive |
Correspondence |
Width B1 (mm) |
7 |
Dimension C |
0.3 mm |
Dimension D1 (mm) |
7.6 |
Dimension d |
4 mm |
