Ships within 19 days
Dimension L (mm)
Model No
View
View
View
View

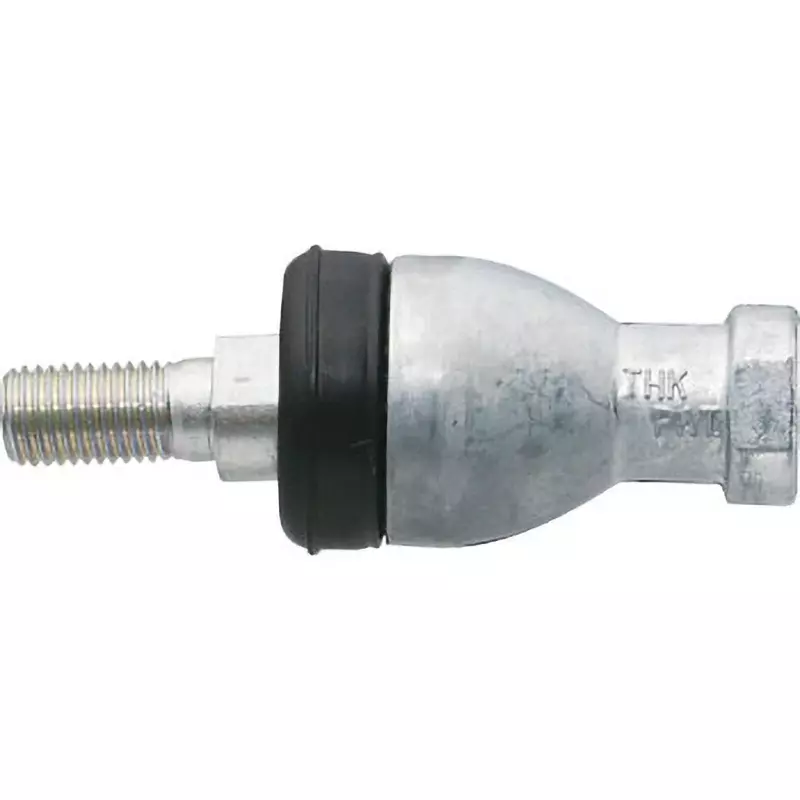

| Type of Product | Link Ball Rod End |
| Model No | RBI16DL |
| Thread Type | Left-Hand Thread Type |
| Material | Holder: Shank with high-strength zinc alloy balls (spherical surface hardness): Hv650 or more Shank with balls (shank): S35C (colored chromate treatment) <br> Boots: NBR special synthetic rubber |
Type of Product |
Link Ball Rod End |
Model No |
RBI16DL |
Thread Type |
Left-Hand Thread Type |
Material |
Holder: Shank with high-strength zinc alloy balls (spherical surface hardness): Hv650 or more Shank with balls (shank): S35C (colored chromate treatment) <br> Boots: NBR special synthetic rubber |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6335971 |
Mass (g) |
360 |

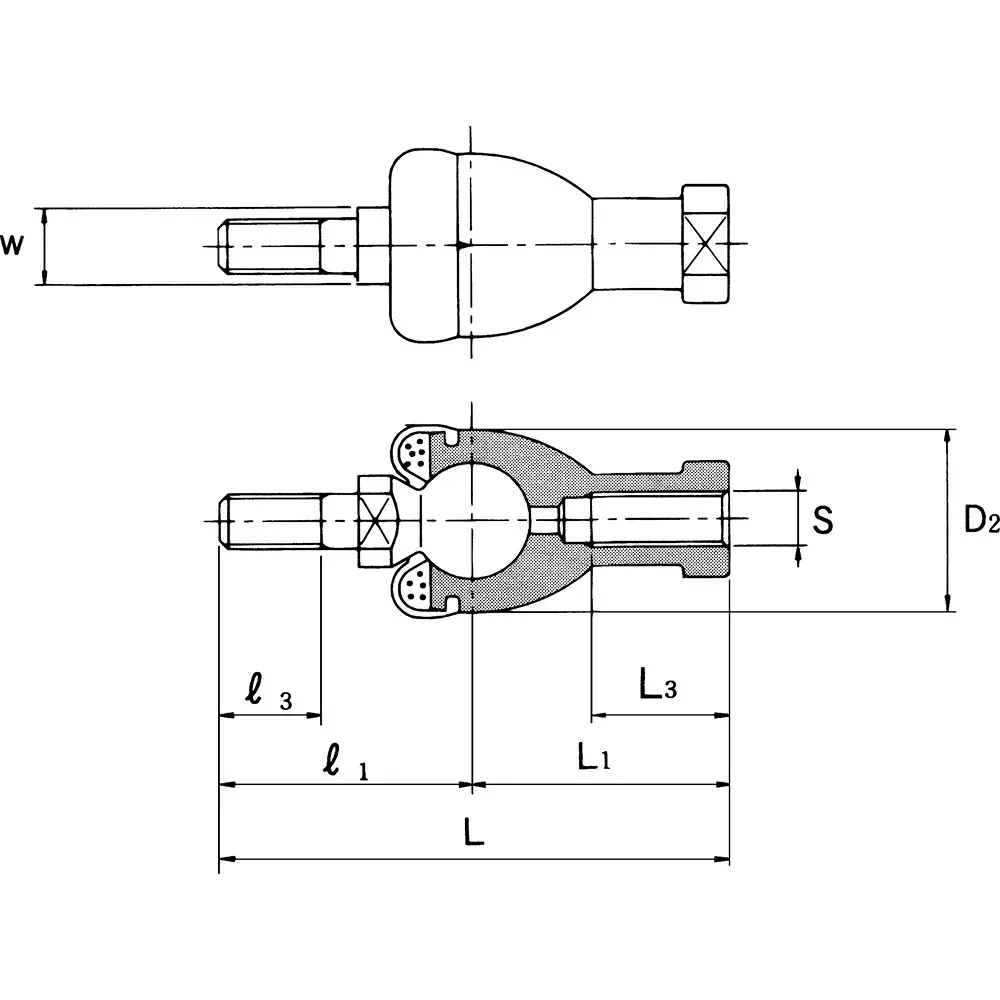

Dimension L (mm) |
112 |
Dimension L1 |
50 mm |
JIS Class |
JIS Class 2 |
Dimension D2 (mm) |
40 |
Dimension W |
22 mm |
Dimension S |
M16x1.5 mm |
Dimension L3 (mm) |
27 |
RoHS Directive |
Correspondence |
