Ships within 25 days
View
View
View
View
| Type of Product | Rod End |
| Model No | PHS20 |
| Thread Type | Female Right-Hand Thread Type |
| Material | Holder: S35C (colored chromate treatment) <br> Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating) <br> Bush: Special copper alloy |
Type of Product |
Rod End |
Model No |
PHS20 |
Thread Type |
Female Right-Hand Thread Type |
Material |
Holder: S35C (colored chromate treatment) <br> Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating) <br> Bush: Special copper alloy |
Country of Origin |
Japan |
Type |
PHS Type |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6334867 |
Mass (g) |
380 |

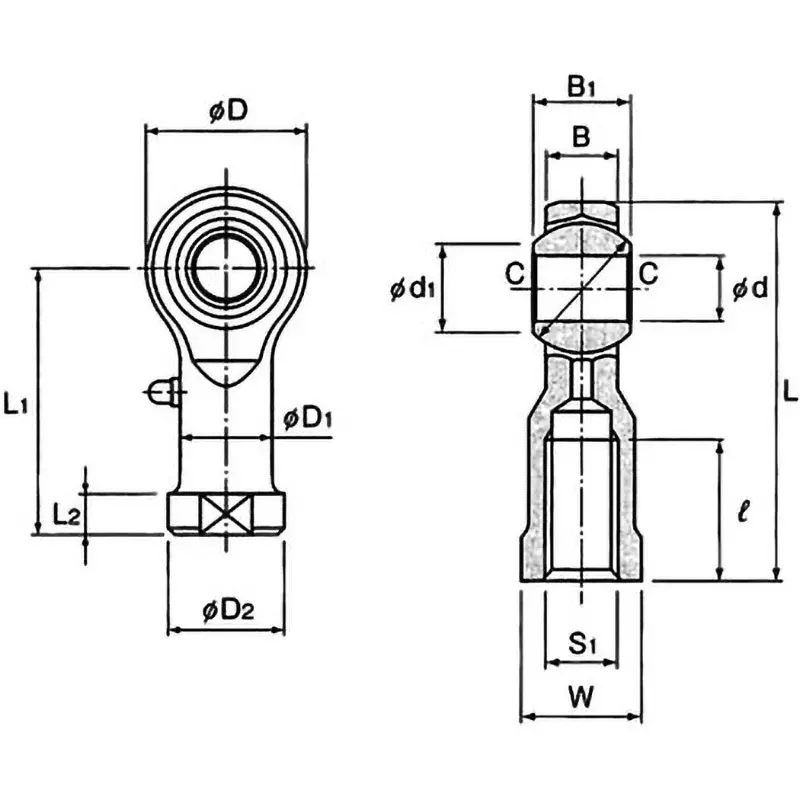

Dimension d2 (Φmm) |
34 |
Dimension d1 (Φmm) |
27.5 |
Dimension B (Φmm) |
18 |
Dimension L (mm) |
100 |
Dimension L1 |
77 mm |
Dimension S1 (mm) |
M20x1.5 |
Dimension L2 |
10 mm |
JIS Class |
JIS Class 2 |
Dimension W |
30 mm |
Dimension S |
M20x1.5 mm |
Width B1 (mm) |
25 |
Dimension C |
0.7 mm |
Dimension D1 (mm) |
24.4 |
Dimension d |
20 mm |
