Ships within 19 days
Dimension d1 (Φmm)
Length L (mm)
Model No
View
View
View
View

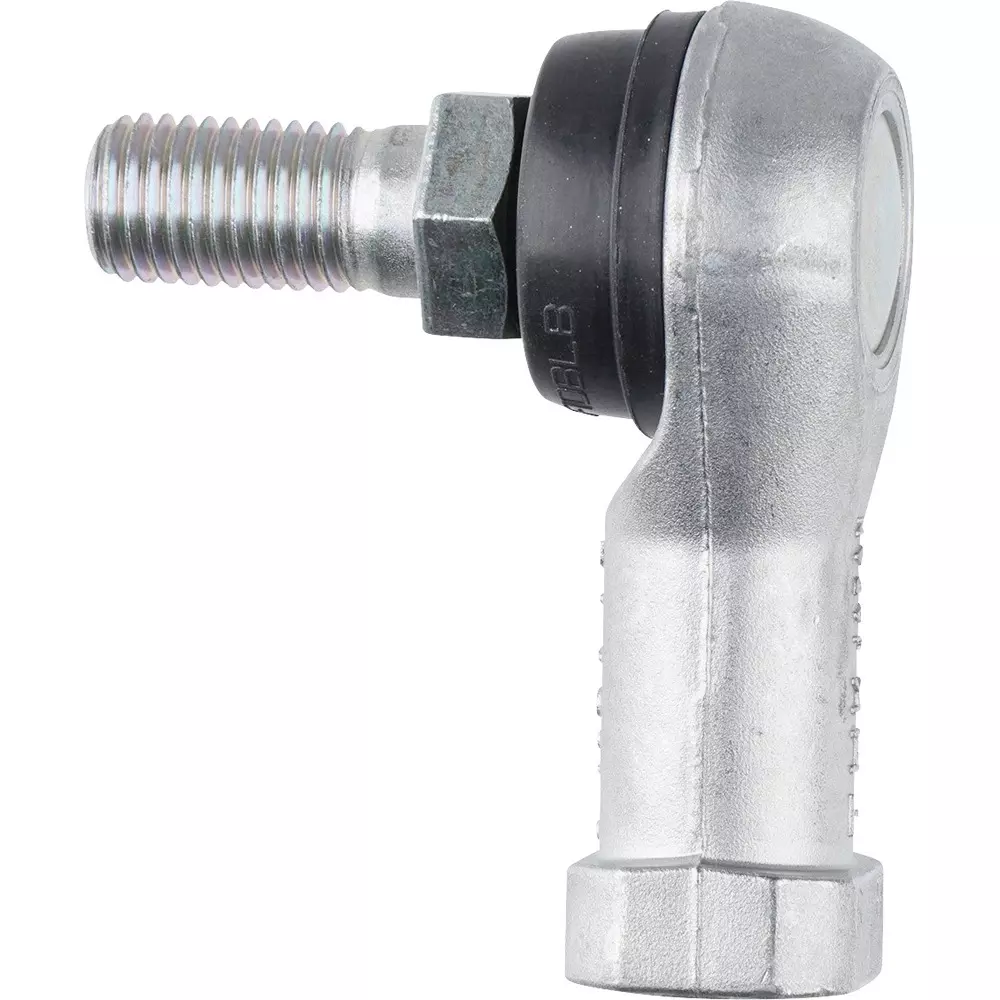

| Type of Product | Link Ball Rod End |
| Model No | BL10D |
| Thread Type | Right-Hand Thread Type |
| Material | Holder / Shank with high-strength zinc alloy balls (light carburized carbon steel ball hardness) / Shank with balls over Hv650 (shank part) / S35C (HRC20-28, chromate treatment) Boot / NBR special synthetic rubber |
Type of Product |
Link Ball Rod End |
Model No |
BL10D |
Thread Type |
Right-Hand Thread Type |
Material |
Holder / Shank with high-strength zinc alloy balls (light carburized carbon steel ball hardness) / Shank with balls over Hv650 (shank part) / S35C (HRC20-28, chromate treatment) Boot / NBR special synthetic rubber |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
32607696 |
Mass (g) |
87 |

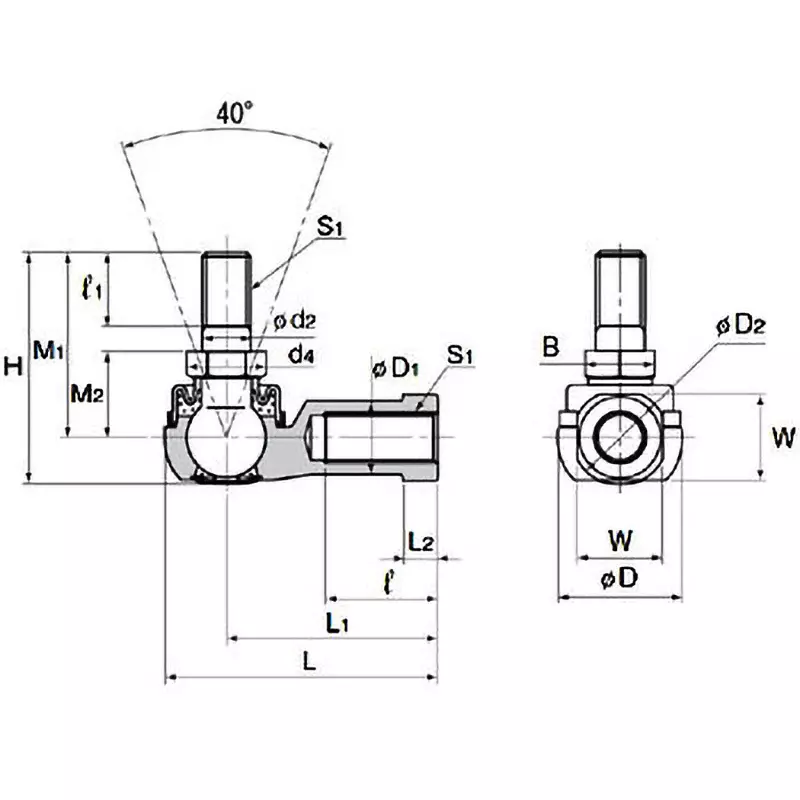

Dimension d2 (Φmm) |
10 |
Dimension d1 (Φmm) |
14.5 |
Dimension B (Φmm) |
14 |
Dimension L (mm) |
23 |
Dimension L1 |
43 mm |
Diameter D (Φmm) |
25 |
Height H (mm) |
46.3 |
Dimension S1 (mm) |
M10x1.25 |
Dimension d4 (mm) |
16.2 |
Length L (mm) |
55.5 |
Dimension M1 (mm) |
37 |
Ball diameter (mm) |
15.875 |
Dimension L2 |
7 mm |
JIS Class |
JIS Class 2 |
Dimension D2 (mm) |
19 |
Dimension W |
17 mm |
