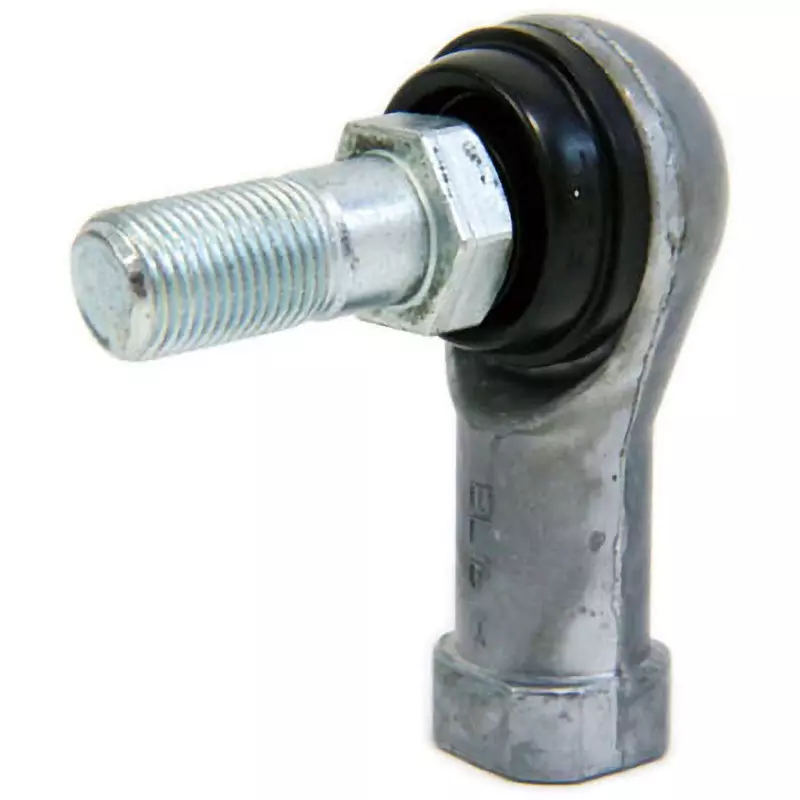

| Type of Product | Link Ball Rod End |
| Model No | BL16DL |
| Thread Type | Left-Hand Thread Type |
| Material | Holder / Shank with high-strength zinc alloy balls (light carburized carbon steel ball hardness) / Shank with balls over Hv650 (shank part) / S35C (HRC20-28, chromate treatment) Boot / NBR special synthetic rubber |
Type of Product |
Link Ball Rod End |
Model No |
BL16DL |
Thread Type |
Left-Hand Thread Type |
Material |
Holder / Shank with high-strength zinc alloy balls (light carburized carbon steel ball hardness) / Shank with balls over Hv650 (shank part) / S35C (HRC20-28, chromate treatment) Boot / NBR special synthetic rubber |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
32607872 |
Mass (g) |
315 |

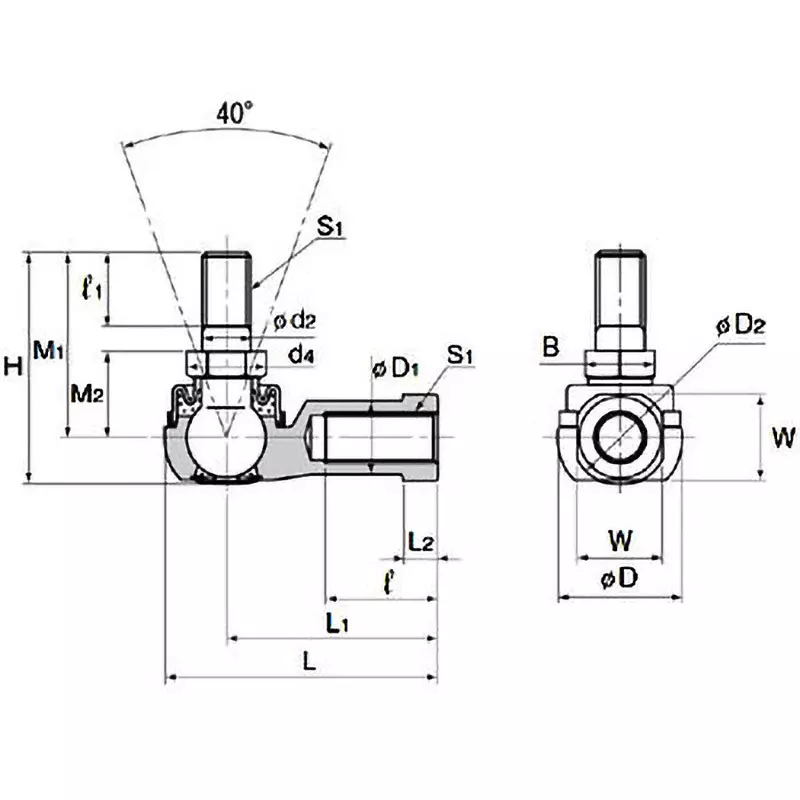

Dimension d2 (Φmm) |
16 |
Dimension d1 (Φmm) |
22 |
Dimension B (Φmm) |
22 |
Dimension L (mm) |
34 |
Dimension L1 |
64 mm |
Diameter D (Φmm) |
38 |
Height H (mm) |
74 |
Dimension S1 (mm) |
M16x1.5 |
Dimension d4 (mm) |
25.4 |
Length L (mm) |
83 |
Dimension M1 (mm) |
60 |
Ball diameter (mm) |
22.225000000000001 |
Dimension L2 |
11 mm |
JIS Class |
JIS Class 2 |
Dimension D2 (mm) |
27 |
Dimension W |
24 mm |
