| Type of Product | Ring Ball |
| Model No | RBI12BD |
| Thread Type | Right-Hand Thread Type |
| Material | Holder: Shank with high-strength zinc alloy balls (spherical surface hardness): Hv650 or more Shank with balls (shank): S35C (colored chromate treatment) <br> Boots: NBR special synthetic rubber |
Type of Product |
Ring Ball |
Model No |
RBI12BD |
Thread Type |
Right-Hand Thread Type |
Material |
Holder: Shank with high-strength zinc alloy balls (spherical surface hardness): Hv650 or more Shank with balls (shank): S35C (colored chromate treatment) <br> Boots: NBR special synthetic rubber |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6335804 |
Mass (g) |
190 |

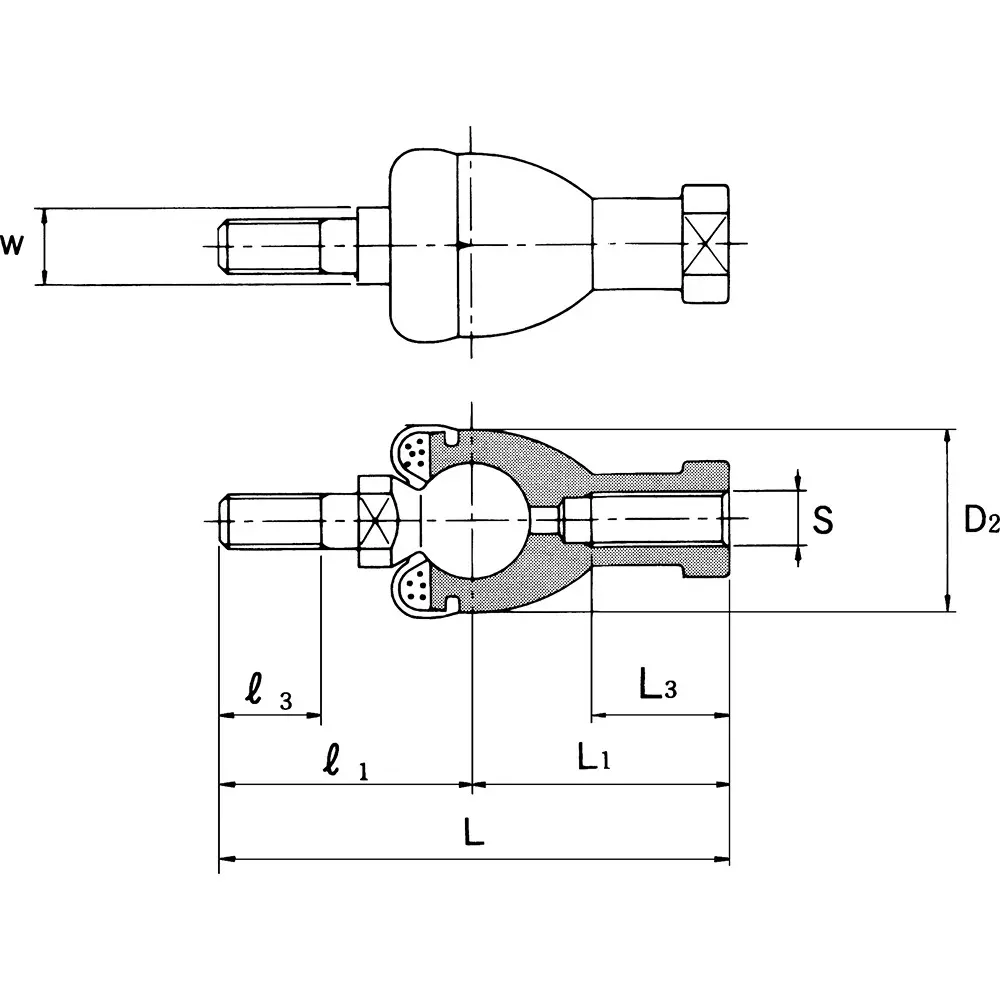

Dimension L (mm) |
91 |
Dimension L1 |
40 mm |
JIS Class |
JIS Class 2 |
Dimension D2 (mm) |
32 |
Dimension W |
19 mm |
Dimension S |
M12x1.75 mm |
Dimension L3 (mm) |
20 |
RoHS Directive |
Correspondence |
