| Type of Product | Rod End |
| Model No | POS14 |
| Thread Type | Male Right-Hand Thread Type |
| Material | Holder: S35C (colored chromate treatment) Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating treatment) Bush: Special copper alloy |
Type of Product |
Rod End |
Model No |
POS14 |
Thread Type |
Male Right-Hand Thread Type |
Material |
Holder: S35C (colored chromate treatment) Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating treatment) Bush: Special copper alloy |
Country of Origin |
Japan |
Type |
POS Type |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6335077 |
Mass (g) |
126 |

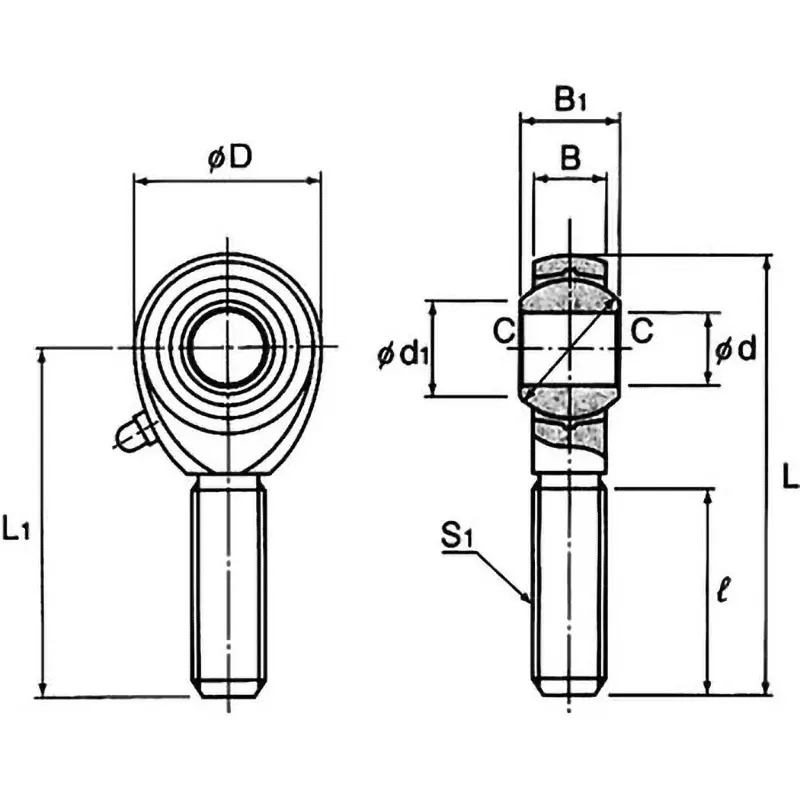

Dimension B (Φmm) |
13.5 |
Dimension L (mm) |
77 |
Dimension L1 |
60 mm |
Dimension S1 (mm) |
M14x2 |
Dimension L2 |
36 mm |
JIS Class |
JIS Class 2 |
Dimension S |
M14x2 mm |
RoHS Directive |
Correspondence |
Width B1 (mm) |
19 |
Dimension C |
0.7 mm |
Dimension D1 (mm) |
16.899999999999999 |
Dimension d |
14 mm |
