| Type of Product | Rod End |
| Model No | PHS5 |
| Thread Type | Female Right-Hand Thread Type |
| Material | Holder: S35C (colored chromate treatment) <br> Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating) <br> Bush: Special copper alloy |
Type of Product |
Rod End |
Model No |
PHS5 |
Thread Type |
Female Right-Hand Thread Type |
Material |
Holder: S35C (colored chromate treatment) <br> Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating) <br> Bush: Special copper alloy |
Country of Origin |
Japan |
Type |
PHS Type |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6334781 |
Mass (g) |
16.5 |

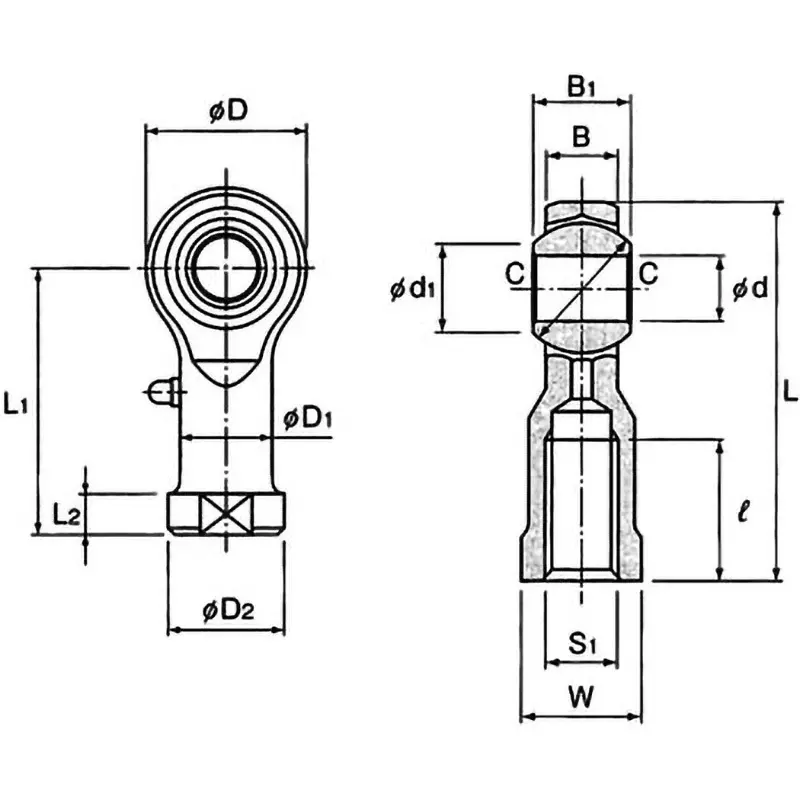

Dimension d2 (Φmm) |
13 |
Dimension d1 (Φmm) |
10 |
Dimension B (Φmm) |
6.75 |
Dimension L (mm) |
35 |
Dimension L1 |
27 mm |
Dimension S1 (mm) |
M5x0.8 |
Dimension L2 |
5 mm |
JIS Class |
JIS Class 2 |
Dimension W |
9 mm |
Dimension S |
M5x0.8 mm |
Width B1 (mm) |
8 |
Dimension C |
0.3 mm |
Dimension D1 (mm) |
9 |
Dimension d |
5 mm |
