| Protection Structure | IP50 |

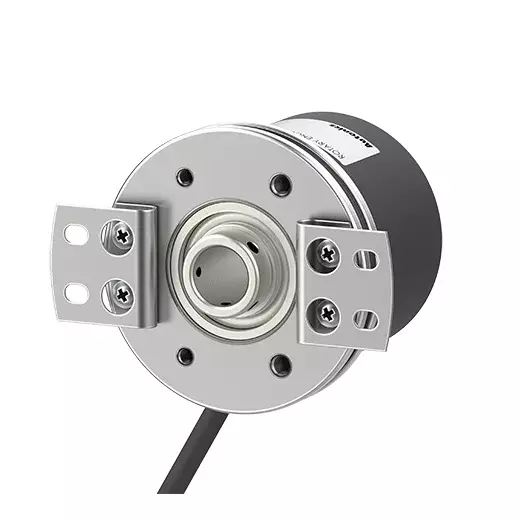

| Model No | E58H12-5000-3-T-24 |
| Resolution | 5000P/R |
| Control Output | Totem pole |
Protection Structure |
IP50 |
Model No |
E58H12-5000-3-T-24 |
Resolution |
5000P/R |
Control Output |
Totem pole |
Output Phase |
A, B, Z |
Weight |
Approx. 380g(approx. 270g) |
Accessories |
Bracket |
Type of Product |
Rotary Encoder |
Max Allowable Revolution |
5000 RPM |
Starting Torque |
Max. 90gf.cm(max. 0.00882N.m) |
Maximum Response Frequency |
300 kHz |
Environment Ambient Temperature |
-10 to 70℃, Storage: -25 to 85℃ |
Environment Ambient Humidity |
35 to 85% RH, Storage: 35 to 90% RH |
Connection Type |
Radial Cable Type |
Shaft Inner Diameter |
Ø12 mm |
Country of Origin |
South Korea |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Power Voltage |
12-24VDC ±5%(ripple P-P: max. 5%) |
