Ships within 25 days
View
View
View
View
| Model No | TRD-SR300A |
| Type of Product | Rotary Encoder |
| Output | NPN open connector |
| Number of Pulses | 300/1 rotation |
Model No |
TRD-SR300A |
Type of Product |
Rotary Encoder |
Output |
NPN open connector |
Number of Pulses |
300/1 rotation |
Cable Length (m) |
1 (standard) |
Current Consumption (mA) |
50 or less (no load) |
Monotaro ID |
43927206 |
Mass (g) |
Approx. 100 (including 1m cable) |
Duty Ratio |
50±25% |
Import Country |
Direct Import from Japan |
Protection Class |
IP50 (dustproof) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
JTEKT Electronics (former Koyo Electronics Industries) |
Power Supply Voltage (V) |
DC 4.5 to 26.4 |
Classification |
Series: Shaft type |
Withstand Voltage |
Excluded due to capacitor ground (between power / signal line and case) |
Maximum Rotation Speed (min⁻¹[rpm]) |
Tolerance: 6000 |
Signal |
Two-phase output + origin (waveform) |
Operation Ambient Temperature (°C) |
-10 to 80 |
Insulation Resistance (MOhm) |
50 or more (between power / signal line and case) |

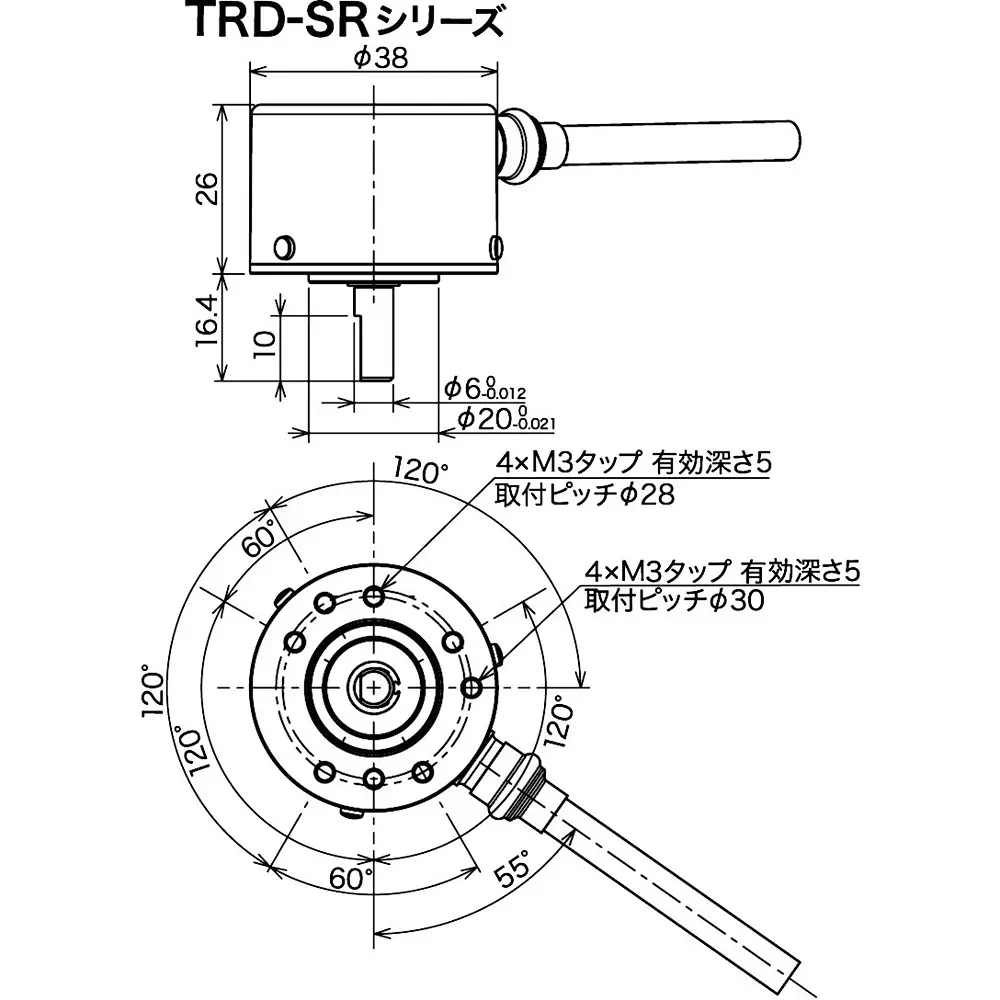

Outer Diameter (Φmm) |
38 |
Operation Mode |
NPN Open Collector Output |
Load Voltage |
DC 30 V or less (power supply) |
Length (mm) |
26 |
Output Voltage (V) |
L: 0.4 or less |
Output Current (mA) |
Sink L: Max 30 |
