Ships within 25 days
View
View
View
View
| Type | Incremental Type |

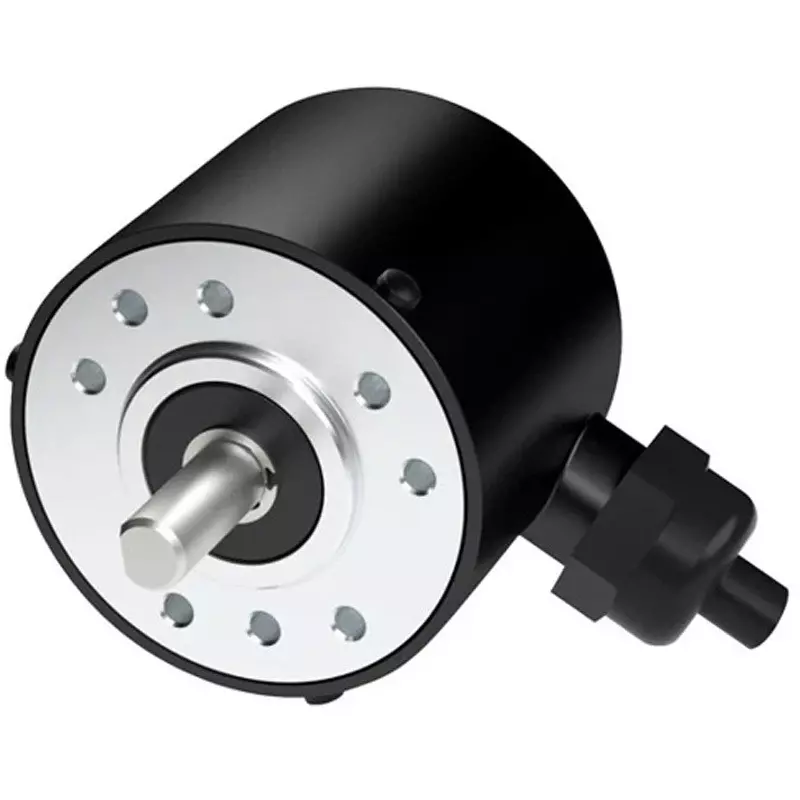

| Model No | TRD-SR600AWE |
| Type of Product | Rotary Encoder |
| Number of Pulses | 600 |
Type |
Incremental Type |
Model No |
TRD-SR600AWE |
Type of Product |
Rotary Encoder |
Number of Pulses |
600 |
Maximum Response Frequency (kHz) |
200 |
Monotaro ID |
7492086 |
Import Country |
Direct Import from Japan |
Protection Class |
IP65 |
Series |
TRD-SR Series |
Output Format |
NPN open collector output |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
JTEKT Electronics (former Koyo Electronics Industries) |
Power Supply Voltage (V) |
DC 4.5 to 26.4 |
Output Signal Type |
Two-phase origin (direct origin operation) |
Operation Ambient Temperature (°C) |
-10 to +80 |
Outer Diameter (Φmm) |
40 |
Allowable Rotation Speed (min-1 [rpm]) |
Maximum: 6000 |
Starting torque (N ・ m) |
0.001 or less |
Shaft Diameter (mm) |
Φ6 |
Acceptable Shaft Load (N) |
Radial Direction: 30 N/Thrust Direction: 20 N |
Control |
Side cable (1m) |
Length (mm) |
35 |
