| Type | Incremental Type |

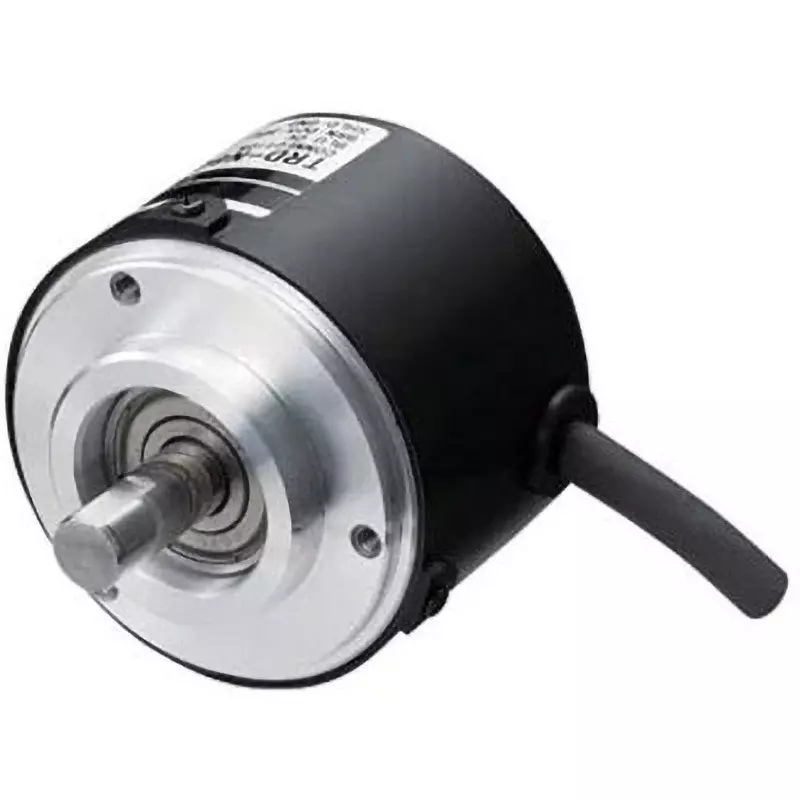

| Model No | TRD-N5-S |
| Type of Product | Rotary Encoder |
| Number of Pulses | 5 |
Type |
Incremental Type |
Model No |
TRD-N5-S |
Type of Product |
Rotary Encoder |
Number of Pulses |
5 |
Maximum Response Frequency (kHz) |
100 |
Monotaro ID |
7485917 |
Import Country |
Direct Import from Japan |
Protection Class |
IP50 |
Series |
TRD-NS Series |
Output Format |
Totem pole output |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
JTEKT Electronics (former Koyo Electronics Industries) |
Power Supply Voltage (V) |
DC 4.75 to 30 |
Output Signal Type |
Single-phase output |
Operation Ambient Temperature (°C) |
-10 to +70 |
Outer Diameter (Φmm) |
50 |
Allowable Rotation Speed (min-1 [rpm]) |
Maximum: 5000 |
Starting torque (N ・ m) |
0.003 or less |
Shaft Diameter (mm) |
Φ8 |
Acceptable Shaft Load (N) |
Radial Direction: 50 N/Thrust Direction: 30 N |
Control |
Side cable (0.5m) |
Length (mm) |
36.5 |
