| Type | Thin |

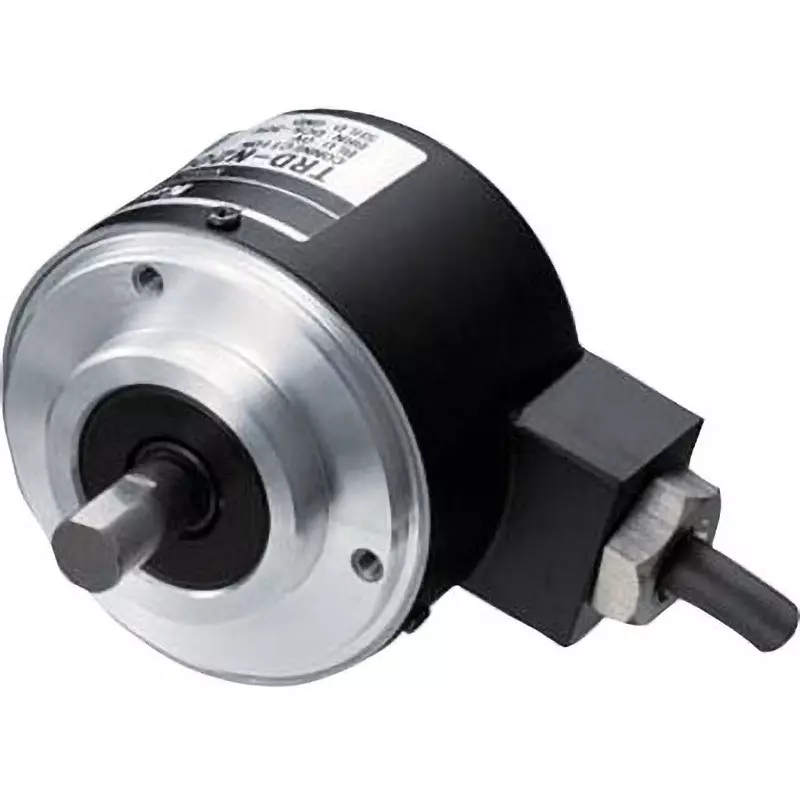

| Model No | TRD-N750-RZVW |
| Type of Product | Encoder |
| Number of Pulses | 750 |
Type |
Thin |
Model No |
TRD-N750-RZVW |
Type of Product |
Encoder |
Number of Pulses |
750 |
Inertia Moment (kgm2) |
Axial: 2x <sup>10-6</sup> |
Current Consumption (mA) |
60 or less (no load) |
Monotaro ID |
33061009 |
Mass (g) |
About 200 |
Duty Ratio |
50±25% |
Import Country |
Direct Import from Japan |
Protection Class |
IP65 (dustproof / jetproof type) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
JTEKT Electronics (former Koyo Electronics Industries) |
Power Supply Voltage (V) |
DC 4.75 to 5.25 |
Classification |
Series: Shaft type |
Withstand Voltage |
AC500V (50/60Hz) for 1 minute |
Maximum Rotation Speed (min⁻¹[rpm]) |
Tolerance: 5000 (However, dustproof and jet-proof types are 3000 continuous and 5000 instantaneous) |
Signal |
Line driver output |
Operation Ambient Temperature (°C) |
-10 to 70 |
Insulation Resistance (MOhm) |
50 mohm or more (between signal line and case) |
Outer Diameter (Φmm) |
50 |
Operation Mode |
Line driver output |
Shaft Diameter (mm) |
Φ8 mm |
Length (mm) |
35 |
Output Voltage (V) |
H: 2.5 or more, L: 0.5 or less |
Shape |
Power supply DC5VΦ50 Incremental type |
