| Type | Hollow shaft |

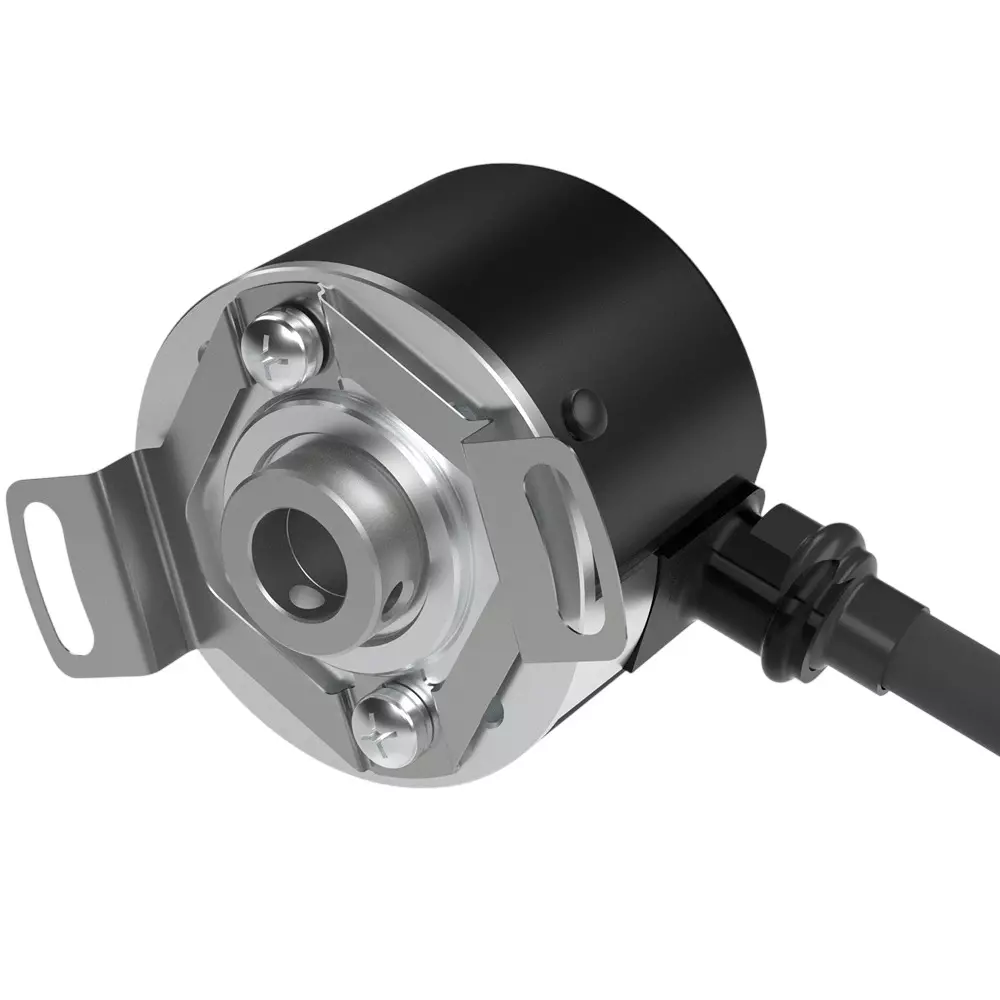

| Model No | TRD-SHR50C0 |
| Type of Product | Rotary Encoder |
| Output | Totem Pole |
Type |
Hollow shaft |
Model No |
TRD-SHR50C0 |
Type of Product |
Rotary Encoder |
Output |
Totem Pole |
Number of Pulses |
50/1 rotation |
Cable Length (m) |
1 (standard) |
Current Consumption (mA) |
50 or less (no load) |
Monotaro ID |
43926594 |
Mass (g) |
Approx. 100 (including 1m cable) |
Import Country |
Direct Import from Japan |
Protection Class |
IP50 (dustproof) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
JTEKT Electronics (former Koyo Electronics Industries) |
Power Supply Voltage (V) |
DC 10.8 to 26.4 |
Classification |
Series: Hollow shaft type |
Withstand Voltage |
Excluded due to capacitor ground (between power / signal line and case) |
Maximum Rotation Speed (min⁻¹[rpm]) |
Tolerance: 6000 |
Signal |
Two-phase output + origin (waveform) |
Insulation Resistance (MOhm) |
50 or more (between power / signal line and case) |

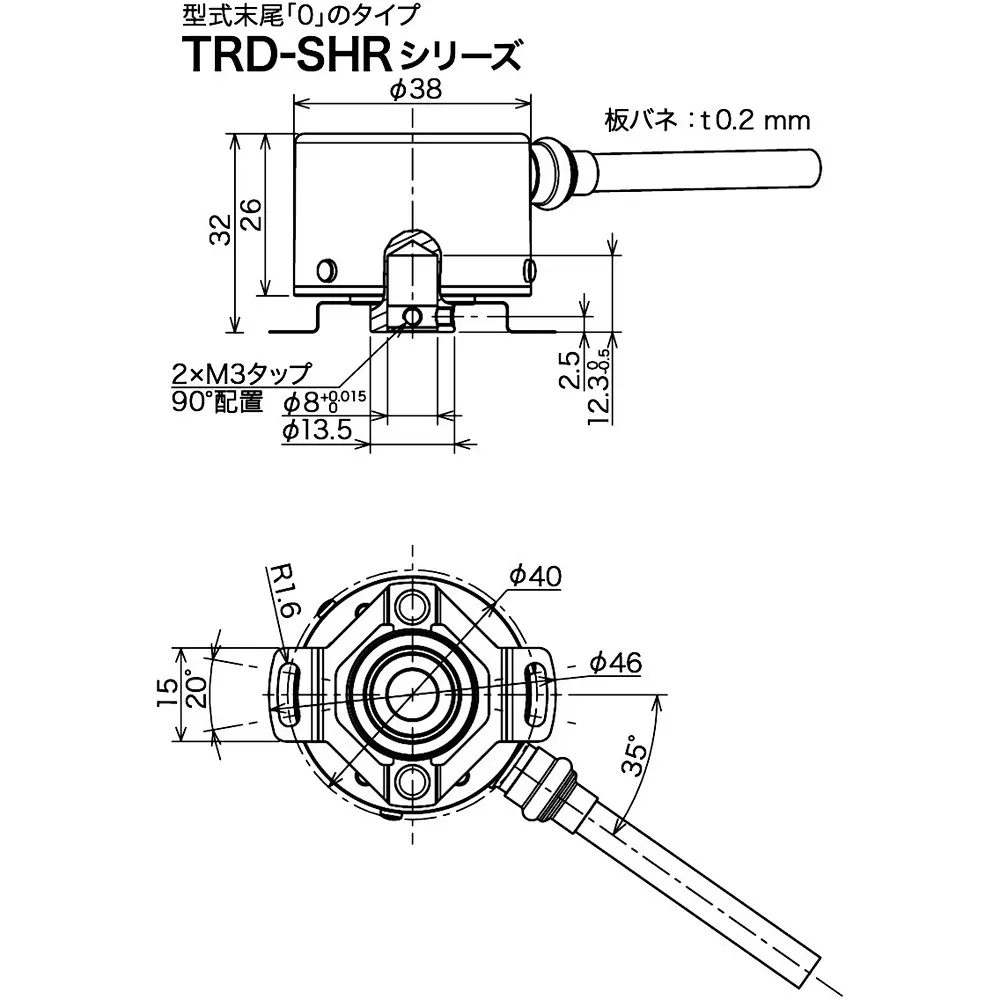

Outer Diameter (Φmm) |
38 |
Operation Mode |
Totem Pole Output |
Load Voltage |
DC 30 V or less (power supply) |
Length (mm) |
32 |
Output Voltage (V) |
H: ((power supply voltage)-2.5) or more, L: 0.4 or less |
Output Current (mA) |
Source H: Up to 10, Sink L: Up to 30 |
Shaft Hole Diameter (mm) |
8 |
