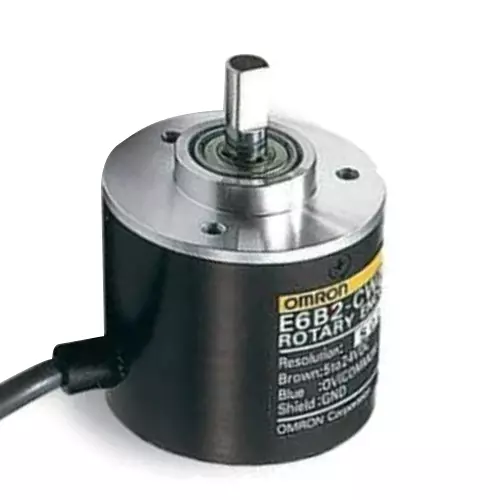

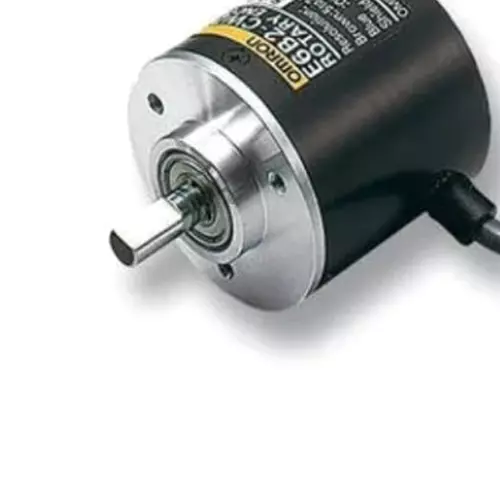

| Model No | E6B2-CWZ1X 500P/R 0.5M |
| Resolution | 500 P/R |
| Rated Power Supply | 5 V |
| Ambient Temperature | 10 to 70 ℃ |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
E6B2-CWZ1X 500P/R 0.5M |
Resolution |
500 P/R |
Rated Power Supply |
5 V |
Ambient Temperature |
10 to 70 ℃ |
Voltage |
5V |
Shaft |
Radial: 30 N Thrust: 20 N |
Type of Product |
Rotary Encoder |
Current Consumption |
160 mA max |
Insulation Resistance |
20 MΩ or higher |
Response Frequency (Hz) |
100 kHz |
Rotational Speed |
6000 RPM |
Vibration Resistance |
Destruction: 10 to 500 Hz |
Pulses |
500 |
Dielectric Strength |
500 VAC 50/60 Hz 1 min |
Shock Resistance |
Destruction: 1000 m/s2 |
Sensor Type |
Incremental |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
