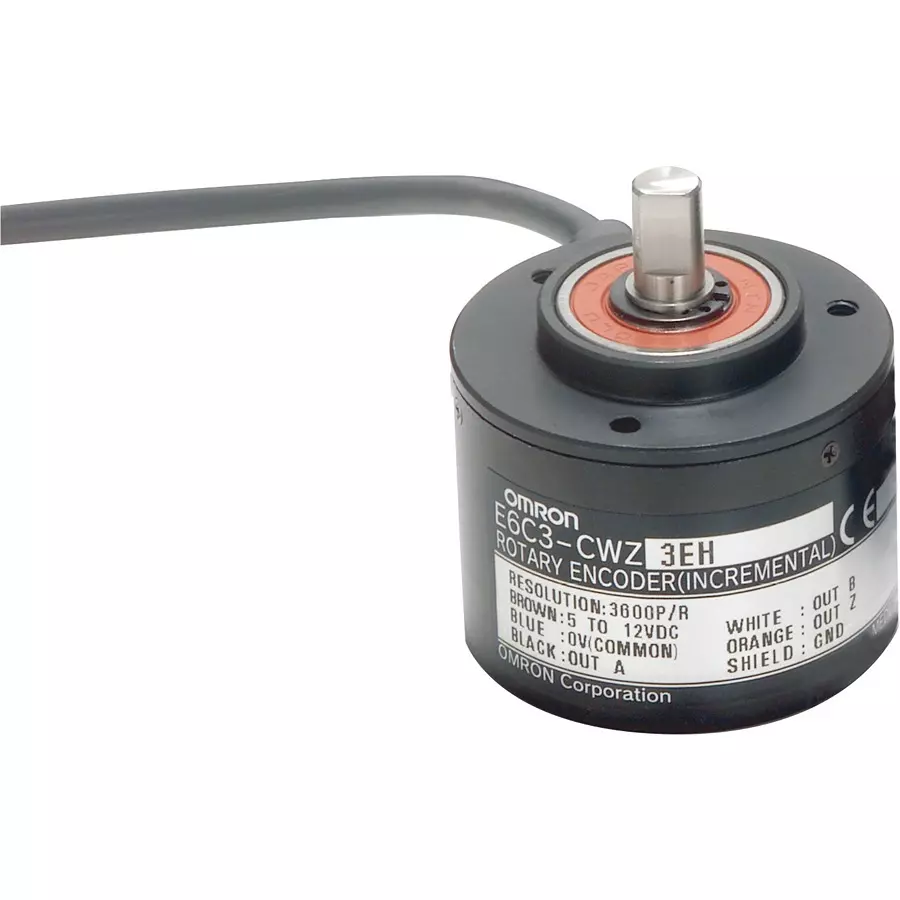

| Type | Rotary Encoder |
| Model No | E6C3-CWZ5GH-500P/R-2M |
| Resolution | 500P/R |
| Control Output | Complementary output |
Type |
Rotary Encoder |
Model No |
E6C3-CWZ5GH-500P/R-2M |
Resolution |
500P/R |
Control Output |
Complementary output |
Type of Product |
Rotary Encoder |
Output |
Complementary output |
Insulation Resistance |
More than 20 (at 500 VDC) between live parts and case |
Connection Type |
Cord Pull-Out Type |
Power Supply Voltage |
DC12-10% -24 + 15% Ripple (pp) 5% or less |
Case Material |
Aluminum |
Cable Length (m) |
2 |
Protection Circuit |
Output load short circuit protection |
Current Consumption (mA) |
When the power is turned on below 100, an inrush current of about 9A flows. (Time: about 0.1ms) |
Ambient Humidity (% RH) |
(Operating and storage) 35 to 85 (no condensation) |
Monotaro ID |
46439504 |
Output Capacity |
Output voltage: VH = Vcc-3V or more (IO = 30mA), VL = 2V or less (IO = -30mA) <br> Output current: ± 30mA |
Mass (g) |
Approx. 300 (packed) |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual Note: Couplings, metal fittings, and hexagon spanners are sold separately. |
Inertia Moment |
2.0x10 Kgm²-6 Kgm² |
Main Unit Material |
Aluminum |
Protection Class |
IEC60529 standard IP65 |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Maximum Rotation Speed (min⁻¹[rpm]) |
5000 |
Category |
Rotary Encoder |
Protection |
Incremental shaft type |
