| Type | Rotary encoder |

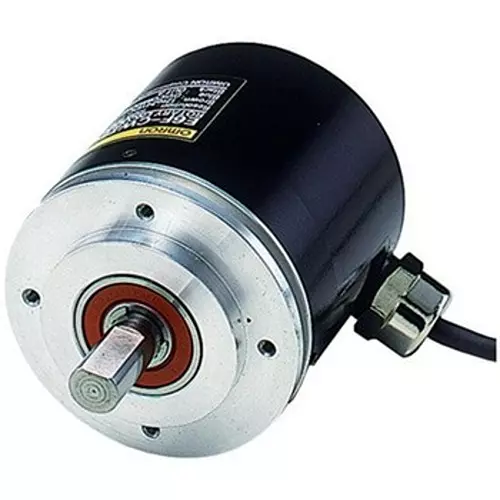

| Model No | E6F-CWZ5G 1000P/R 2M |
| Resolution | 1000 pulses/revolution |
| Type of Product | Rotary Encoder |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Rotary encoder |
Model No |
E6F-CWZ5G 1000P/R 2M |
Resolution |
1000 pulses/revolution |
Type of Product |
Rotary Encoder |
Output |
Complementary output |
Connection Type |
Cord pull-out type (cord length: 2m) |
Power Supply Voltage |
DC12-10% -24 + 15% Ripple (pp) 5% or less |
Case Material |
Zinc alloy |
Cable Length (m) |
2 |
Inertia Moment (kgm2) |
3x10 -⁶ or less |
Protection Circuit |
Power supply reverse connection protection, output load short-circuit protection |
Rise / Fall Time |
1μs or less (Cord length: 2m, Output current: 30mA) |
Current Consumption (mA) |
under 100 |
Ambient Humidity (% RH) |
During use and storage: 35 to 85 (but do not allow condensation) |
Monotaro ID |
39060323 |
Output Capacity |
Output voltage: VH=VCC-3V or more (IO=30mA), VL=2V or less (IO=-30mA)<br> Output current: ±30mA |
Mass (g) |
Approx. 400 (packed) |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual Note: Couplings, fittings, and hexagonal spanners are sold separately. |
Main Unit Material |
Aluminum |
Protection Class |
IEC standard IP65 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Classification |
Incremental shaft type |
Maximum Rotation Speed (min⁻¹[rpm]) |
5000 |
Pack of |
1 Pcs |
Insulation Resistance (MOhm) |
More than 20 (at 500 V DC) between li Ve parts and case |
