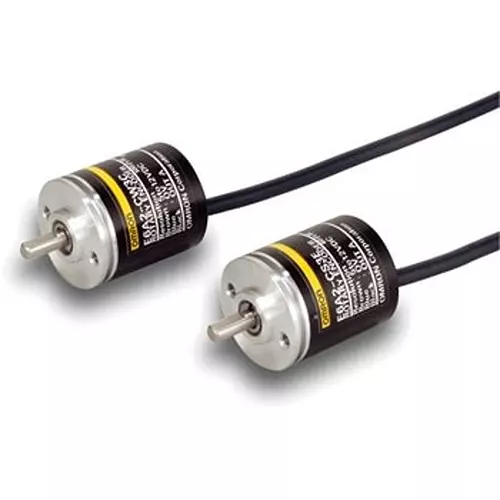

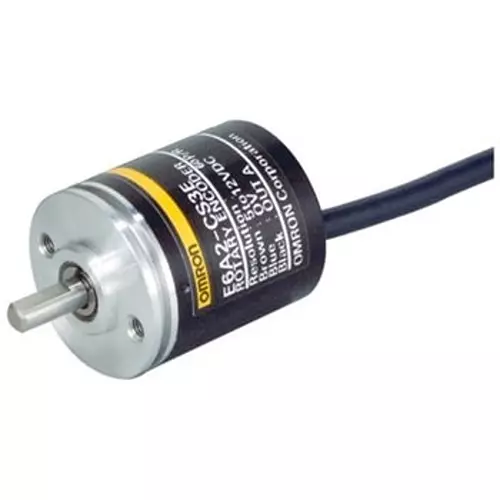

| Type | Rotary encoder |
| Model No | E6A2-CS5C-60P/R-2M |
| Resolution | 60P/R |
| Type of Product | Rotary Encoder |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Rotary encoder |
Model No |
E6A2-CS5C-60P/R-2M |
Resolution |
60P/R |
Type of Product |
Rotary Encoder |
Output |
NPN open collector output |
Connection Type |
Cord drawer type |
Power Supply Voltage |
DC12-10% -24 + 15% Ripple (pp) 5% or less |
Case Material |
Aluminum alloy |
Cable Length (m) |
2 |
Inertia Moment (kgm2) |
1x10 <sup>-7</sup> or less |
Current Consumption (mA) |
20 or less |
Ambient Humidity (% RH) |
During use and storage: 35 to 85 (no condensation) |
Monotaro ID |
46437316 |
Output Capacity |
Applied voltage: DC30V or less Sink current: 30mA or less Residual voltage: 0.4V or less (when sink current is 30mA) |
Mass (g) |
Approx. 35 (packed) |
Duty Ratio |
50±25% |
Import Country |
Direct Import from Japan |
Included Components |
Coupling, hexagonal spanner, instruction manual |
Main Unit Material |
Metal part: Aluminum |
Protection Class |
IEC standard IP50 <br> There is no protection against water and oil. |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Classification |
Incremental shaft type |
Maximum Rotation Speed (min⁻¹[rpm]) |
5000 |
Pack of |
1 Pcs |
Operation Ambient Temperature (°C) |
When used: -10 to 55<br> Storage: -25 to 80 (but do not freeze) |
Insulation Resistance (MOhm) |
Between li Ve parts and case: 20 mohm or more (at 500 V DC) |
