Model No
View
View
View
View
| Type | Incremental Type |
| Ambient Humidity | During Use & Storage: 35 to 85% RH (No Condensation) |
| Model No | E6C2-CWZ6C 500P/R 2M |
| Resolution | 500 Pulses/Revolution |
Type |
Incremental Type |
Ambient Humidity |
During Use & Storage: 35 to 85% RH (No Condensation) |
Model No |
E6C2-CWZ6C 500P/R 2M |
Resolution |
500 Pulses/Revolution |
Weight |
Approx. 400 g (Packed) |
Type of Product |

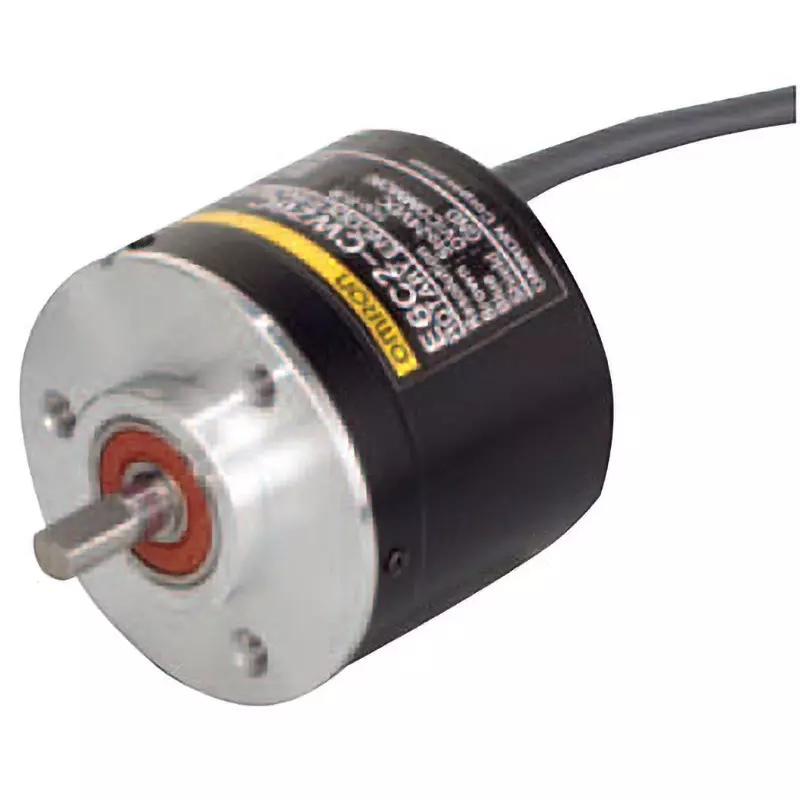

Rotary Encoder |
Output |
Open Collector Output (NPN Output) |
Current Consumption |
Less than 70, when the power is turned on, an inrush current of about 9A flows. (Time: about 0.3ms) |
Insulation Resistance |
More than 20 MΩ (at 500 VDC) between live parts and case |
Vibration Resistance |
10 to 500 Hz Double amplitude 2 mm or 150m / s <sup>2</sup> X, Y, Z direction 1 sweep 11min 3 sweep |
Cable Length |
2 m |
Connection Type |
Cord drawer type |
Power Supply Voltage |
DC 5-5% to 24+15% Ripple (pp) 5% or less |
Case Material |
Zinc Alloy |
Protection Circuit |
Load Short-Circuit Protection, Power Supply Reverse Connection Protection |
Output Shaft Allowable Radial Load (N) |
50N |
Rise / Fall Time |
1μs or less (Control Output Voltage 5V, Load Resistance 1kΩ, Cord Length 2m) |
Monotaro ID |
8587022 |
Output Capacity |
Applied Voltage:DC30V or less, Sink Current: 35 mA or less, Residual Voltage: 0.4V or less (at sink current 35 mA) |
Import Country |
Direct Import from Japan |
Inertia Moment |
3×10ˉ⁷ kgm² or less |
Main Unit Material |
Aluminum |
Maximum Rotational Speed |
6000 minˉ¹ [rpm] |
Protection Class |
IEC Standard IP64 (Company Standard Oil-Proof) |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
