| Type | Rotary encoder |

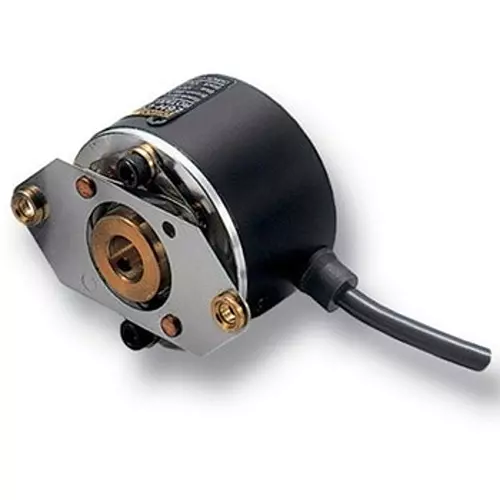

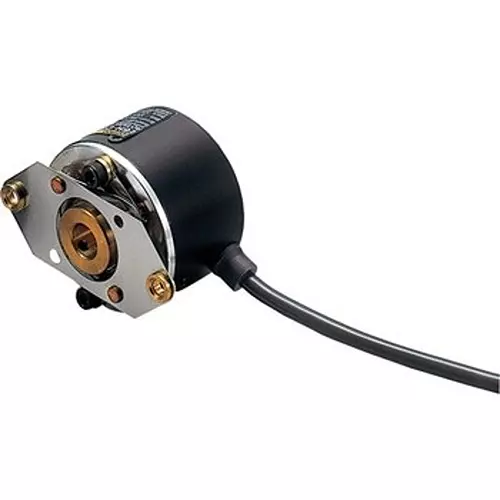

| Model No | E6H-CWZ6C-360P/R-0.5M |
| Resolution | 360 pulses/rotation |
| Type of Product | Rotary Encoder |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Rotary encoder |
Model No |
E6H-CWZ6C-360P/R-0.5M |
Resolution |
360 pulses/rotation |
Type of Product |
Rotary Encoder |
Output |
Open collector output |
Connection Type |
Cord pull-out type (cord length: 0.5m) |
Power Supply Voltage |
DC5-5% to 24 + 15% Ripple (pp) 5% or less |
Case Material |
Iron |
Cable Length (m) |
0.5 |
Inertia Moment (kgm2) |
2x10 -⁶ or less |
Output Shaft Allowable Radial Load (N) |
29.4 |
Rise / Fall Time |
1μs or less (Control output voltage: 5V, Load resistance: 1kΩ, Cord length: 500 mm) |
Current Consumption (mA) |
under 100 |
Ambient Humidity (% RH) |
During use and storage: 90 or less (no condensation) |
Monotaro ID |
46438576 |
Output Capacity |
Applied voltage: DC35V or less Sink current: 35mA or less Residual voltage: 0.7V or less (when sink current is 35mA) |
Mass (g) |
Approx. 120 (packed) |
Import Country |
Direct Import from Japan |
Main Unit Material |
Aluminum |
Protection Class |
IEC standard IP50 |
Vibration Resistance (Destruction) |
10 to 500Hz 100m / s² or double amplitude 1.5 mm X, Y, Z direction 2h each |
Material |
Leaf spring: SUS304 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Classification |
Incremental type, hollow shaft type |
Maximum Rotation Speed (min⁻¹[rpm]) |
10000 |
Pack of |
1 Pcs |
