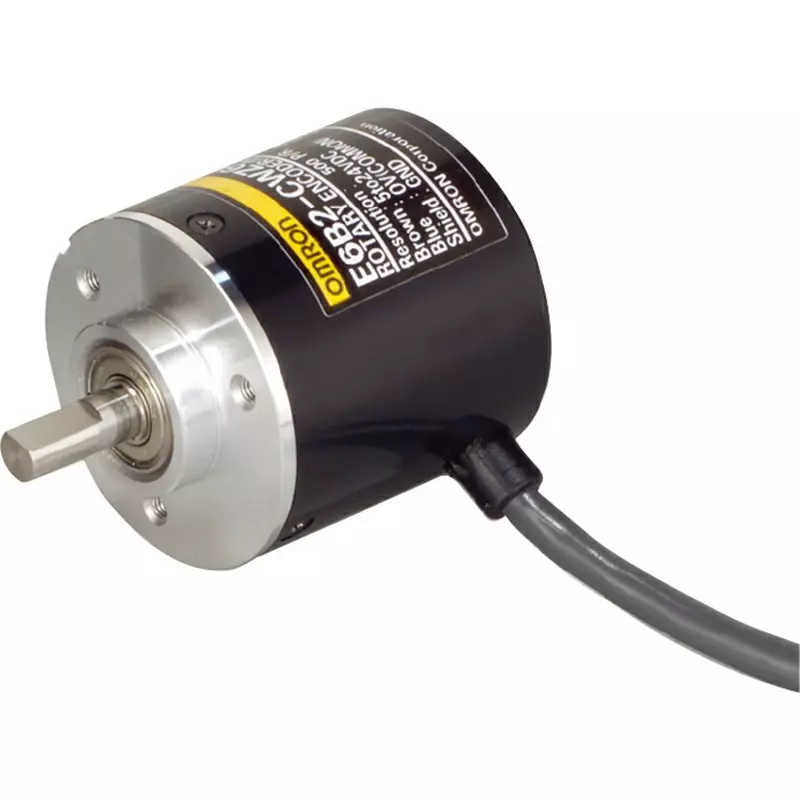

| Model No | E6B2-CWZ1X-1200P/R-2M |
| Resolution | 1200P/R |
| Control Output | Line Driver Output (Equivalent To Am26Ls31) |
| Type of Product | Rotary Encoder Incremental |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
E6B2-CWZ1X-1200P/R-2M |
Resolution |
1200P/R |
Control Output |
Line Driver Output (Equivalent To Am26Ls31) |
Type of Product |
Rotary Encoder Incremental |
Output |
Line Driver Output |
Insulation Resistance |
More than 20 (at 500 VDC) between live parts and case |
Connection Type |
Cord Pull-Out Type (Cord Length 2 M) |
Case Material |
ABS |
Cable Length (m) |
2 |
Current Consumption (mA) |
160 or less-When the power is turned on, an inrush current of about 9A flows. (Time: about 0.3ms) |
Ambient Humidity (% RH) |
During use and storage: 35 to 85 (no condensation) |
Monotaro ID |
46437587 |
Output Capacity |
Equivalent to Am26ls31 (Output Current) H Level: IO = -20 mA, L Level: IS = 20 mA (Output Voltage) VO = 2.5 V Or More, Vs = 0.5 V or Less |
Mass (g) |
Approx. 100 (Packed) |
Included Components |
Coupling, Hexagon Spanner, Instruction Manual |
Main Unit Material |
Aluminum |
Protection Class |
IEC standard IP50 |
Series |
E6B2 |
Country of Origin |
CHINA |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage (V) |
DC5 ± 5% Ripple (pp) 5% or less |
Maximum Rotation Speed |
6000 |
Height (mm) |
59 |
Classification |
Incremental Shaft Type |
