Ships within 19 days
Model No
View
View
View
View
| Type | Incremental Type |

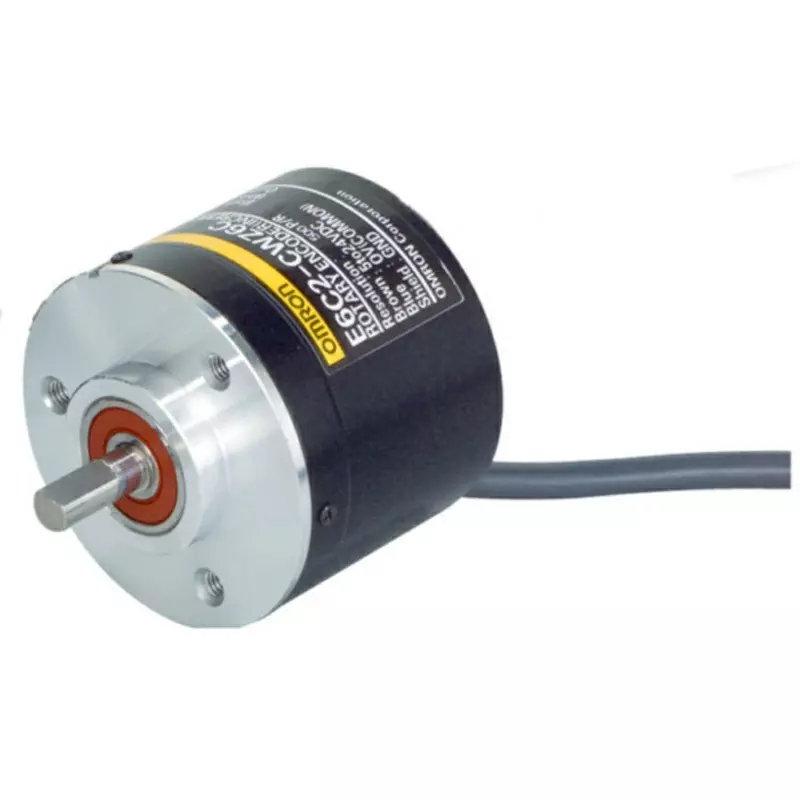

| Model No | E6C2-CWZ1X-800P/R-2M |
| Resolution | 800P/R |
| Control Output | Line Driver Output (Equivalent To Am26Ls31) |
Type |
Incremental Type |
Model No |
E6C2-CWZ1X-800P/R-2M |
Resolution |
800P/R |
Control Output |
Line Driver Output (Equivalent To Am26Ls31) |
Shaft |
Round Type |
Type of Product |
Rotary Encoder |
Output |
Line driver Output |
Connection Type |
Cord Pull-Out Type (Cord Length 2 m) |
Power Supply Voltage |
DC 5-5%, Ripple (pp) 5% or less |
Case Material |
Zinc Alloy |
Cable Length (m) |
2 |
Current Consumption (mA) |
160 or Less |
Monotaro ID |
46439723 |
Output Capacity |
Equivalent to AM26LS31 Output Current/ H Level: IO=-20 mA L level: IS=20 mA Output Voltage/ VO=2.5 V or more VS=0.5 V or less |
Mass (g) |
Approx. 400 (Packed) |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual Note: Couplings, metal fittings, and hexagon spanners are sold separately. |
Main Unit Material |
Aluminum |
Protection Class |
IEC Standard IP64 |
Series |
E62C |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Power Supply Voltage (V) |
DC 5 ± 5% Ripple (Pp) 5% Or Less |
Maximum Rotation Speed |
6000 RPM |
Height (mm) |
60 |
Classification |
Incremental Shaft Type |
Outer Diameter (mm) |
50 |
