| Type of Product | Sealed Dip Switch |
| Monotaro ID | 39026452 |
| Color | (Strike lever) Orange |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Sealed Dip Switch |
Monotaro ID |
39026452 |
Color |
(Strike lever) Orange |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Operating Force (N) |
0.29 to 4.9 |
Electrical Durability |
2000 times or more |
Withstand Voltage |
Between terminals: AC500V 1min |
No. of Pole |
6-Pole |
Type |
Convex Type |
Part No |
64-3335-54 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
A6D-6103 |
Operating Humidity Range |
35 to 95% RH (at +5 to + 35 ° C) |
Vibration Resistance (Malfunction) |
10-55Hz double amplitude 1.5mm |
Shock Resistance (Malfunction) |
300 or more |
Contact Resistance (ohm) |
100 or less (initial value) |
Mass (g) |
0.65 |
Electrical ratings |
30V DC 30mA, 3.5V DC 10μA (minimum current) |
Operating Temperature Range |
-20 to +70℃ 60% RH or less |
Insulation Resistance (MOhm) |
100 or more (at 250 VDC) |

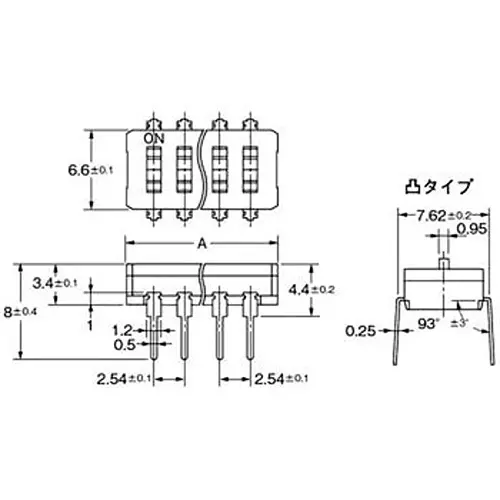

Dimension A (Φmm) |
φ17.3±0.2 mm |
