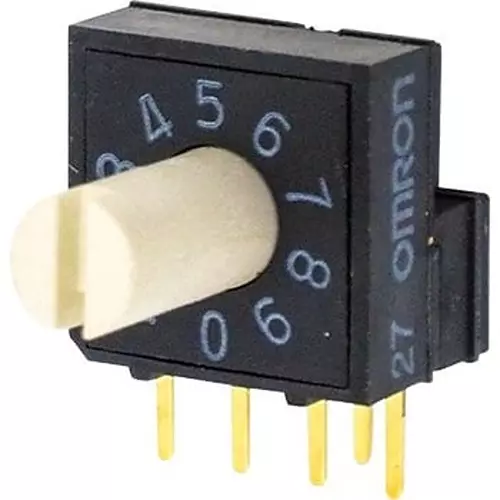

| Type of Product | Rotary Dip Switch |
| Monotaro ID | 46489247 |
| Color | (Rotor) white |
| Model No | A6RV-101RS |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Rotary Dip Switch |
Monotaro ID |
46489247 |
Color |
(Rotor) white |
Model No |
A6RV-101RS |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Output Code |
Real code |
Electrical Durability |
More than 5000 steps |
Withstand Voltage |
Between terminals: 250 VAC for 1 min |
Position |
10 |
Type |
Side operation Shaft type |
Part No |
64-3336-40 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Operating Humidity Range |
35 to 95% RH (at +5 to + 35 ° C) |
Vibration Resistance (Malfunction) |
10-55Hz double amplitude 1.5 mm |
Shock Resistance (Malfunction) |
300 m/s² or more |
Terminal Structure |
4x1 |
Contact Resistance (ohm) |
200 or less (initial value) |
Mass (g) |
About 0.8 |
Electrical ratings |
24V DC 25mA, 3.5V DC 10μA (minimum current) |
Operating Temperature Range |
-25 to +80℃ 60% RH or less (with no icing or condensation) |
Insulation Resistance (MOhm) |
100 mohm or more (at 250 VDC) |
Operating Torque |
1.96x10² Nm |
