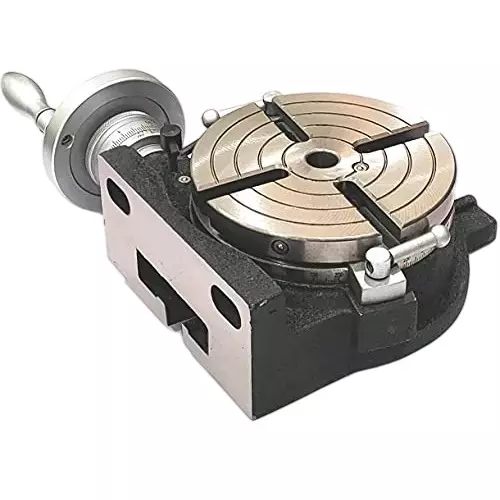

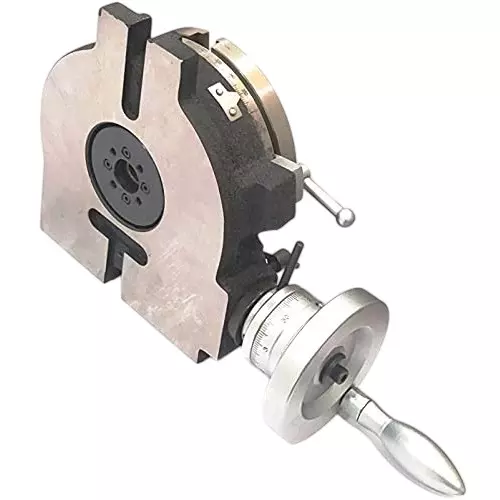

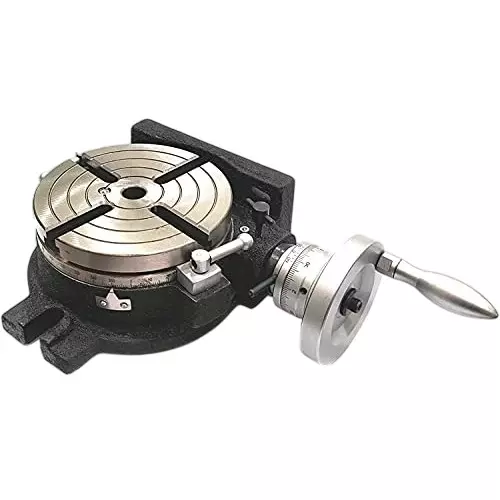

Type of Product | HV6 Rotary Table |
Model No | 75-DX2V-X93C |
Material | Tool Steel & Seasoned Casting |
Height | Horizontal: 80 mm (Base to Top Surface of Chuck), 160 mm (Including Jaws Height) |
Type of Product |
HV6 Rotary Table |
Model No |
75-DX2V-X93C |
Material |
Tool Steel & Seasoned Casting |
Height |
Horizontal: 80 mm (Base to Top Surface of Chuck), 160 mm (Including Jaws Height) |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
A. D. International |
Base Size |
208 mm x 170 mm |
Table Diameter |
6 inch (150 mm) |
Compatibility |
Dividing Plates and Tailstock |
Worm Gear Ratio |
90:1 |
Chuck Size |
125 mm |
No. of Jaws |
4 Jaw |
Graduation |
360° (Table) |
Slot Width |
16 mm |

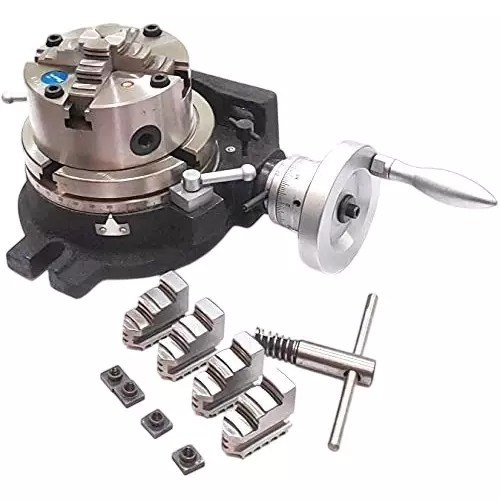

Included Components |
Lathe Key, Reversible Jaws Set |
Thread Size |
Mounting: M8 x 3 |
Centre Bore |
MT-2 |
Chuck Type |
Self Centering Chuck with Reversible Jaws |
