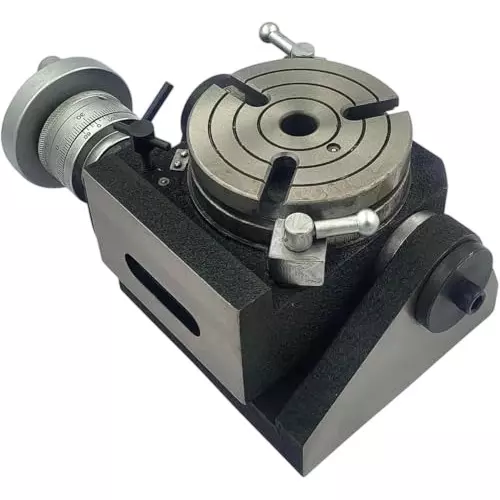

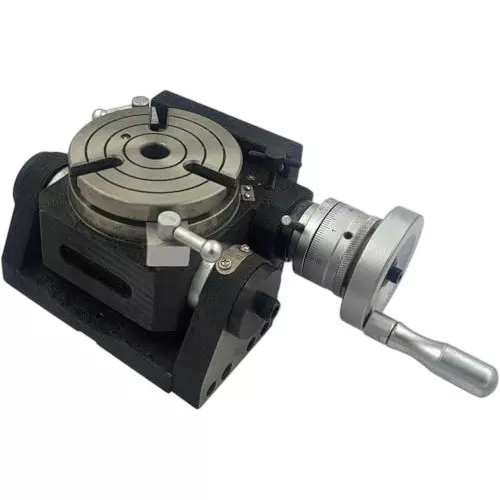

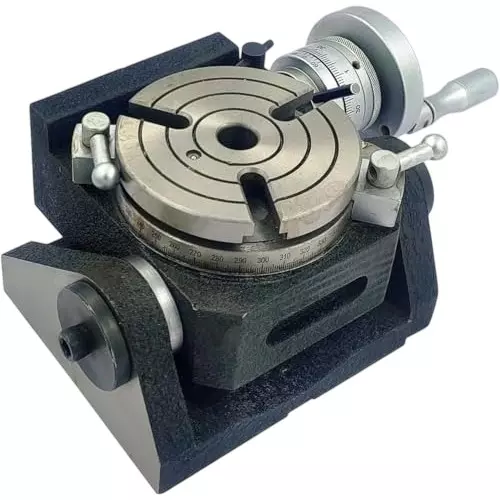

Type of Product | Rotary Milling Table |
Model No | 20-RT-501 |
Height | Horizontal: 120 mm |
Size | HV4 |
Type of Product |
Rotary Milling Table |
Model No |
20-RT-501 |
Height |
Horizontal: 120 mm |
Size |
HV4 |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
A. D. International |
Center Height |
In Vertical Position: 80 mm |
Dimension |
16 x 17 x 5 cm |
Type |
3 Slot Tilting |
Weight |
13 Kg |
Power Source |
Manual |
Table Diameter |
4 inch (110 mm) |
Worm Gear Ratio |
1:90 |
Graduation |
360° |
Slot Width |
11 mm |
Centre Bore |
MT2 |
Orientation |
Horizontal Vertical |
