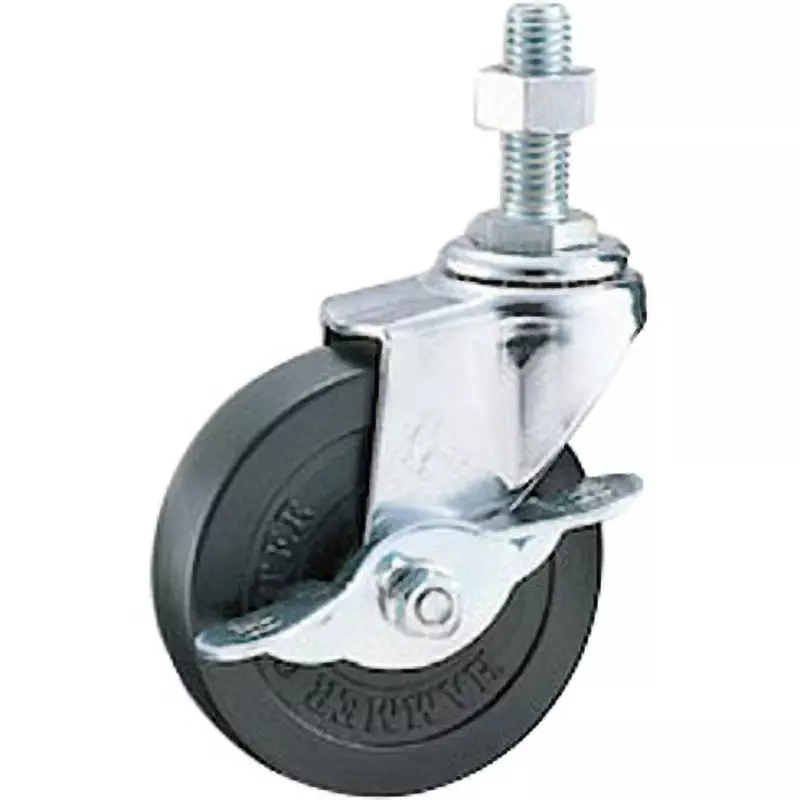

| Type of Product | Long Screw Free Caster with Nut |
| Wheel Material | Rubber (R), Nylon (N), Urethane (Ur) |
| Model No | K-420EA-50-UR |
| Weight | 210 g |
Type of Product |
Long Screw Free Caster with Nut |
Wheel Material |
Rubber (R), Nylon (N), Urethane (Ur) |
Model No |
K-420EA-50-UR |
Weight |
210 g |
Included Components |
Hexagon Nut |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Dimensions w (mm) |
20 |
Surface Finish Type |
Body: Chrome Plating (MFCr), But K-420A Diameter φ32 Is Zinc Plating Chromate Treatment (MFZn-C) |
Monotaro ID |
61128883 |
Main Unit Material |
Steel Plate Cold Commercial (SPCC) |
Dimension D (Φmm) |
50 |
TAKIGEN Code |
30773 |
Allowable Loads |
392N |
Dimensions H2 (mm) |
35 |
Dimension L (mm) |
21 |
Dimensions H1 (mm) |
68 |
Turning Radius |
47 mm |
Dimension M |
M12x1.75 |
Import Country |
Direct Import from Japan |
