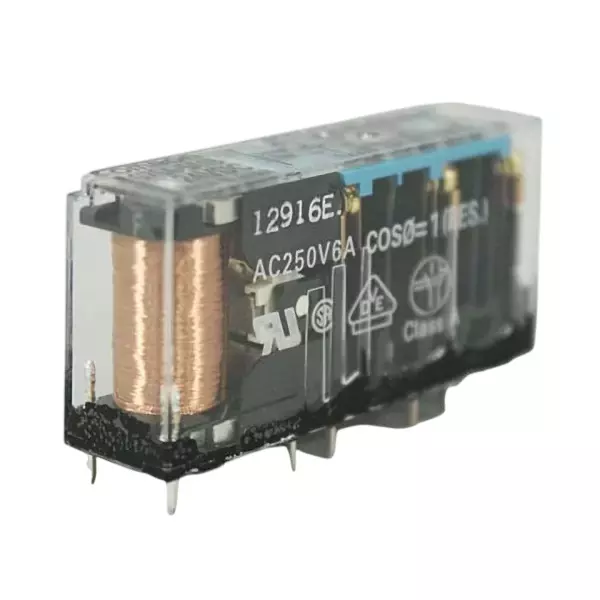

| Type of Product | Safety Relay |
| Part No | G7SA-5A1B DC24 |
| Model No | G7SA-5A1B DC24 |
| Contact Configuration | 5a1b |
Type of Product |
Safety Relay |
Part No |
G7SA-5A1B DC24 |
Model No |
G7SA-5A1B DC24 |
Contact Configuration |
5a1b |
Response Time |
10 ms or less |
Mass (g) |
about 25 |
Rated Load |
AC 250 V 6 A, DC30 V 6 A |
External dimensions (mm) |
50 or less x 13 or less x 24 or less |
Operating Time (ms) |
Below 20 (ambient temperature 23℃) |
Withstand Voltage |
Between coil contacts, between opposite poles (6 poles: excluding between poles 3-5, 4-6, and 5-6): AC4000V 50/60Hz 1min Between opposite poles (3-5, 4-6, and 5-6): AC2500V 50/60Hz 1min Between same pole contacts: AC1500V 50/60Hz 1min |
Coil Voltage |
DC24 |
Mechanical Durability |
10 million times (open/close frequency: 36,000 times/hour) |
Vibration Resistance |
10 to 55 to 10Hz Single amplitude 0.75 mm (Double amplitude 1.5 mm) |
Coil Resistance |
1152 |
Rated Voltage (V) |
DC24 |
Failure Rate P Level (Reference Value: at Switching Frequency 120 times/min) |
DC 5V 1mA (switching frequency 300 times/min) |
Monotaro ID |
39070683 |
Electrical Durability |
Over 100,000 cycles (rated load, switching frequency of 1800 cycles/hour) |
No. of Pole |
6 |
Import Country |
Direct Import from Japan |
Contact Material |
Au plating + Ag alloy |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Terminal Structure |
Terminals for printed circuit boards |
Operation Ambient Temperature (°C) |
-40 to +85 degrees Celsius (provided there is no freezing or condensation) |
Contact Resistance (ohm) |
100 or less (using the DC 5V 1A voltage drop method) |
Insulation Resistance (MOhm) |
Over 1000 (measured with a DC 500V insulation resistance meter) |
shock (malfunction) (m/s2) |
100 |
Impact Resistance (Durability) (m/s²) |
1000 |
Ib Order code |
39070683 |
Protective Structure |
Flux-resistant type |
Rated Load Voltage (V) |
AC 250 6A (resistive load) DC30 6A (resistive load) |
Maximum switching frequency (cycles/hour) / Rated load |
1800 |
Ambient Humidity (% RH) |
5-85 |
Recovery time |
Below 20 (ambient temperature 23℃) |
Contents |
1 piece |
Coil Rating |
DC 24 V 20.8 mA |
Maximum opening/closing frequency (times/hour) / Mechanical |
36000 |
Procurement Type |
Direct Import from Japan |
