| Protection Class | IP67(IEC60529) |

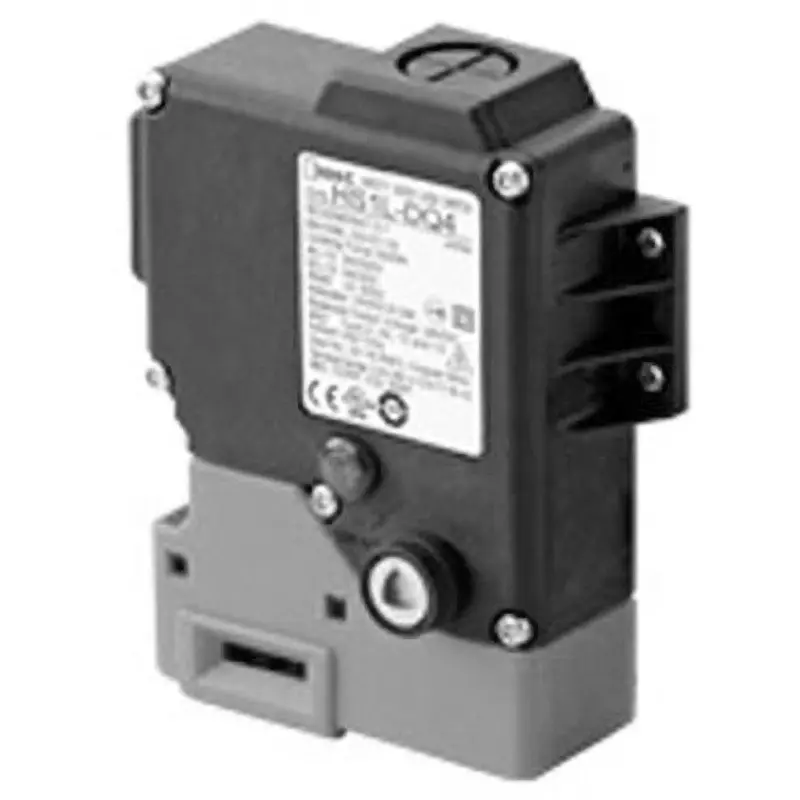

| Type of Product | Safety Switch Spring Lock |
| Model No | HS1L-DT7Y4KMSRM-G |
| Monotaro ID | 6207364 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Protection Class |
IP67(IEC60529) |
Type of Product |
Safety Switch Spring Lock |
Model No |
HS1L-DT7Y4KMSRM-G |
Monotaro ID |
6207364 |
Contact Configuration |
Main circuit: 1NC+1NC, Monitor circuit: 1NC, 1NC |
Voltage |
24 V DC |
Color |
Indicator color: Green |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Rated Insulation Voltage (V) |
300 |
Vibration Resistance (Malfunction) |
10-55Hz, single amplitude: 0.35mm |
Mechanical Durability |
Over 1 million times (GS-ET-19) |
Electrical Durability |
100,000 times or more (AC-15 3A/250V), 1 million times or more (AC/DC24V ・100mA) (operation frequency 900 times/hour) |
Operating Force |
Direct open circuit: 50N or more |
Rated Voltage (V) |
Indicator light: DC24 |
Import Country |
Direct Import from Japan |
Storage Temperature Range |
-40 to 80℃ (no icing) |
Insulation_Resistance (MΩ) |
Live metal part - non-charged metal part: 100 or more (at 500V DC megger) / Between different polarity live parts: 100 or more (at 500V DC megger) |
Specifications |
Actuator operation speed: 0.05 to 1 m/s |
Operation Ambient Temperature (°C) |
-20 to 55 (but do not freeze) |
Relative Humidity |
45 to 85% (with no condensation) |
Tensile Strength (N) |
Actuator when locked: 3000 or more (GS-ET-19) |
Applicable Standard |
ISO14119, IEC60947-5-1, EN60947-5-1 (TUV certified), GS-ET-19 (TUV certified), UL508 (UL listing certified), CSA C22.2 No. 14 (c-UL listing certified), GB/T14048.5 (CCC certified), Application standards: IEC60204-1/EN60204-1 |
Vibration Resistance (Destruction) |
30Hz, single amplitude: 1.5mm |
