| Protection Class | IP67(IEC60529) |

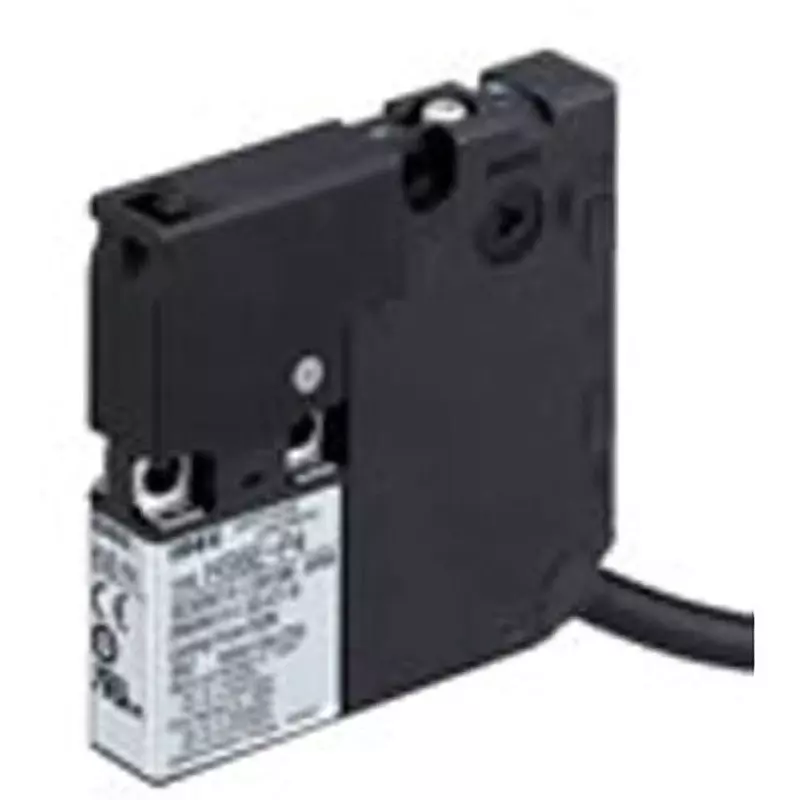

| Type of Product | Safety Switch Spring Lock |
| Model No | HS6E-N44B01-G |
| Monotaro ID | 6209385 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Protection Class |
IP67(IEC60529) |
Type of Product |
Safety Switch Spring Lock |
Model No |
HS6E-N44B01-G |
Monotaro ID |
6209385 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Resistance |
300 mΩ or less |
Rated Insulation Voltage (V) |
300 (door monitor circuit), 150 (lock monitor circuit), 30 (LED, between solenoid and ground) |
Rated Impulse Withstand Voltage (kV) |
Main, lock monitor circuit: 1.5, door monitor circuit: 2.5, LED, between solenoid and ground: 0.5 |
Electric Shock Protection Class |
ClassⅡ(IEC61140) |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
Live parts - non-live parts: 100 or more (at 500V DC megger) / Between different polarity live parts: 100 or more (at 500V DC megger) |
Specifications |
Indicator light color: Green Solenoid unit voltage (V): DC24 Circuit number: Main circuit: 1NC+1NC/Door monitor circuit: 1NC, 1NO/Lock monitor circuit: 1NO Indicator light rated voltage (V): DC24 |
Mass (g) |
220 |
Impact Resistance (Malfunction) (m/s²) |
100 |
Impact Resistance (Durability) (m/s²) |
1000 |
Rated Carrying Current (A) |
2.5 (up to 2 circuits), 1.0 (3 circuits or more) (-25°C or more and less than 35°C) / 1.0 (1 circuit), 0.5 (2 circuits or more) (35°C or more and less than 50°C) |
Vibration Resistance |
Malfunction: 10 to 55Hz, single amplitude: 0.35mm/endurance: 30Hz, single amplitude: 1.5mm |
Cable Length (m) |
1 |
Cable Outer Diameter |
7.6 Φmm |
Cable |
UL2464 No.22 AWG (12 cores, 0.3mm2 equivalent/core) |
Lock Mechanisms |
Spring lock |
Body Color |
Black |
