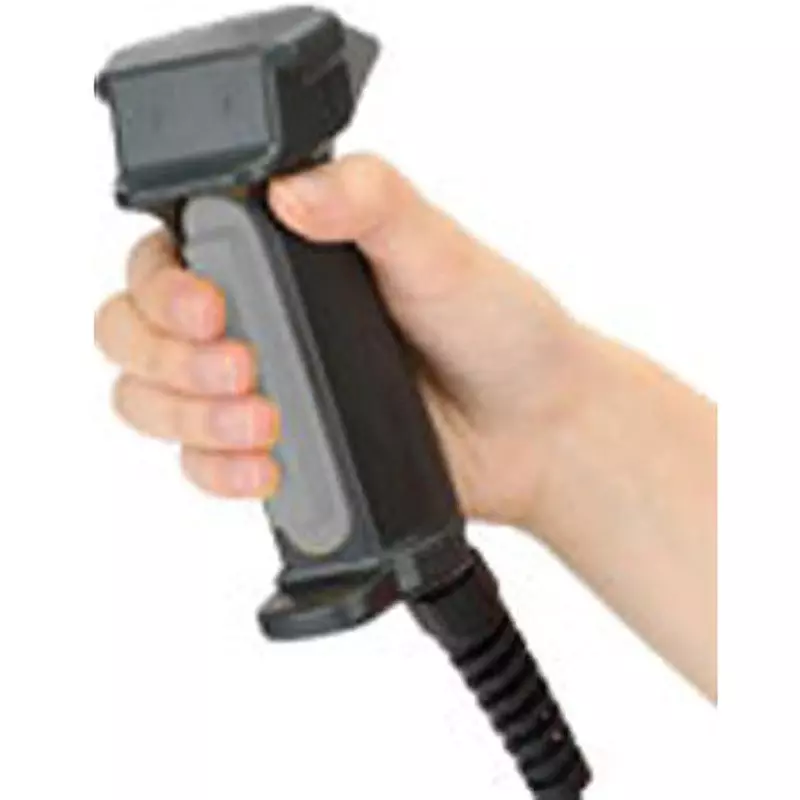

| Type of Product | Grip Switch Basic Grey Boot |
| Model No | HE2G-21SC-1N |
| Monotaro ID | 6204598 |
| Contact Configuration | 2 contacts (3 position switch), 1NC (monitor switch) |
Type of Product |
Grip Switch Basic Grey Boot |
Model No |
HE2G-21SC-1N |
Monotaro ID |
6204598 |
Contact Configuration |
2 contacts (3 position switch), 1NC (monitor switch) |
Conduit Size |
M16 (connector included) |
Color |
Gray (rubber cover) |
Material |
NBR/PVC polyblend (rubber cover) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Rated Insulation Voltage (V) |
250 (125 for momentary pushbutton switch and selector switch with key) 30 (type with indicator light) |
Rated Impulse Withstand Voltage (kV) |
1.5 |
Electric Shock Protection Class |
Class II (Class III with indicator light) (IEC61140) |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
Live parts and non-charged metal parts: 100 or more (at 500V DC megger) / Between different polarity live parts: 100 or more (at 500V DC megger) |
Compatible Cable |
0.05 - 0.86(AWG18 - 30) |
Mass (g) |
145 |
Wiring Connections |
Internal connector |
Impact Resistance (Malfunction) (m/s²) |
150 |
Impact Resistance (Durability) (m/s²) |
1000 |
Rated Carrying Current (A) |
3 (Emergency stop push button switch only 5) |
Vibration Resistance |
Malfunction: 5 to 55Hz, single amplitude: 0.5mm/endurance: 16.7Hz, single amplitude: 1.5mm |
Terminal Strength (N) |
over 20 |
