| Protection Class | IP65(IEC60529) |

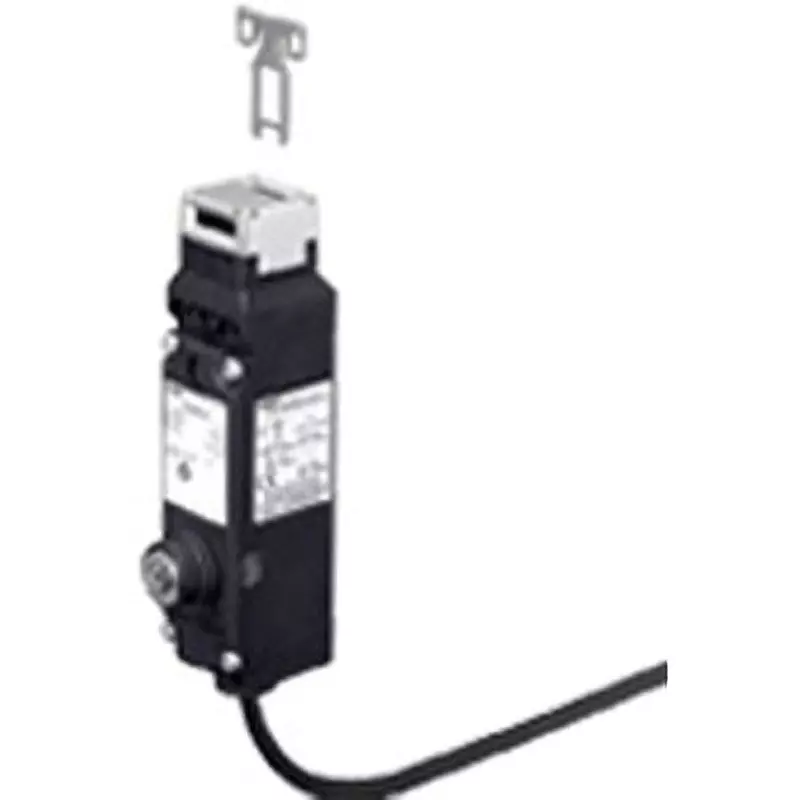

| Type of Product | Safety Interlock |
| Model No | HS5E-KVD005-2C |
| Monotaro ID | 6209087 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Protection Class |
IP65(IEC60529) |
Type of Product |
Safety Interlock |
Model No |
HS5E-KVD005-2C |
Monotaro ID |
6209087 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Rated Insulation Voltage (V) |
250 |
Rated Impulse Withstand Voltage (kV) |
2.5 |
Electric Shock Protection Class |
ClassⅡ(IEC61140) |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
Charged metal part - non-charged metal part: 100 or more (at 500V DC megger) / Charged metal part - earth: 100 or more (at 500V DC megger) / Charged metal part - Charged metal part: 100 or more (at 500V DC megger) / Between terminals of the same polarity: 100 or more (at DC500V megger) |
Specifications |
Key number: Standard key number (500) Circuit number: Door monitor circuit: 2NC/Lock monitor circuit: 2NC |
Mass (g) |
680 |
Impact Resistance (Malfunction) (m/s²) |
100 |
Impact Resistance (Durability) (m/s²) |
1000 |
Rated Carrying Current (A) |
2.5 or less (-25℃ or more and less than 60℃), 1.5 or less (60℃ or more and less than 65℃), 1.0 or less (65℃ or more and less than 70℃) |
Vibration Resistance |
Malfunction: 10 to 55Hz, single amplitude: 0.35mm/endurance: 30Hz, single amplitude: 1.5mm |
Key Omission |
LOCK time off |
Cable Length (m) |
5 |
Number of Notches |
2 |
