| Protection Class | IP67(IEC60529) |

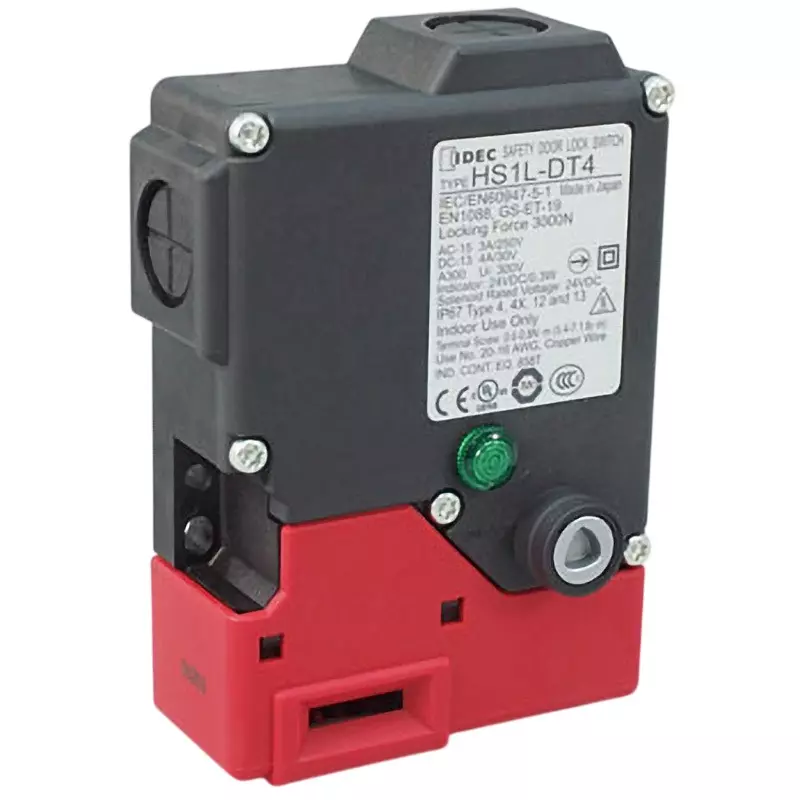

| Type of Product | Hs1L Safety Switch With Solenoid |
| Model No | HS1L-DT44KMSR-G |
| Monotaro ID | 60054057 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Protection Class |
IP67(IEC60529) |
Type of Product |
Hs1L Safety Switch With Solenoid |
Model No |
HS1L-DT44KMSR-G |
Monotaro ID |
60054057 |
Conduit Size |
G1/2 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Resistance |
50 mΩ or Less (Initial Value) |
Rated Insulation Voltage (V) |
300 |
Rated Impulse Withstand Voltage (kV) |
4 (LED, between solenoid and ground: 1.5) |
Electric Shock Protection Class |
ClassⅡ(IEC61140) |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
Live metal part - non-charged metal part: 100 or more (at 500V DC megger) / Between different polarity live parts: 100 or more (at 500V DC megger) |
Specifications |
Lock strength (N): MS: 3000 Indicator light color: Green Solenoid unit voltage (V): DC24 Circuit number: 1NC+1NC/1NC+1NC (main circuit), 1NC, 1NC (monitor circuit) Display Light rated voltage (V): DC24 |
Mass (g) |
450 |
Impact Resistance (Durability) (m/s²) |
1000 |
Rated Carrying Current (A) |
10 |
Vibration Resistance |
Malfunction: 10 to 55Hz, single amplitude: 0.35mm/endurance: 30Hz, single amplitude: 1.5mm |
Lock Mechanisms |
Spring lock |
Body Color |
Black / red |
Manual Unlock KEY |
Key available |
