Ships within 19 days
Model No
View
View
View
View
| Connection Type | Terminal Block |
| Protection Class | IP67, TYPE 4X Indoor Use Only (UL, CSA) |
| Weight | About 410 g |

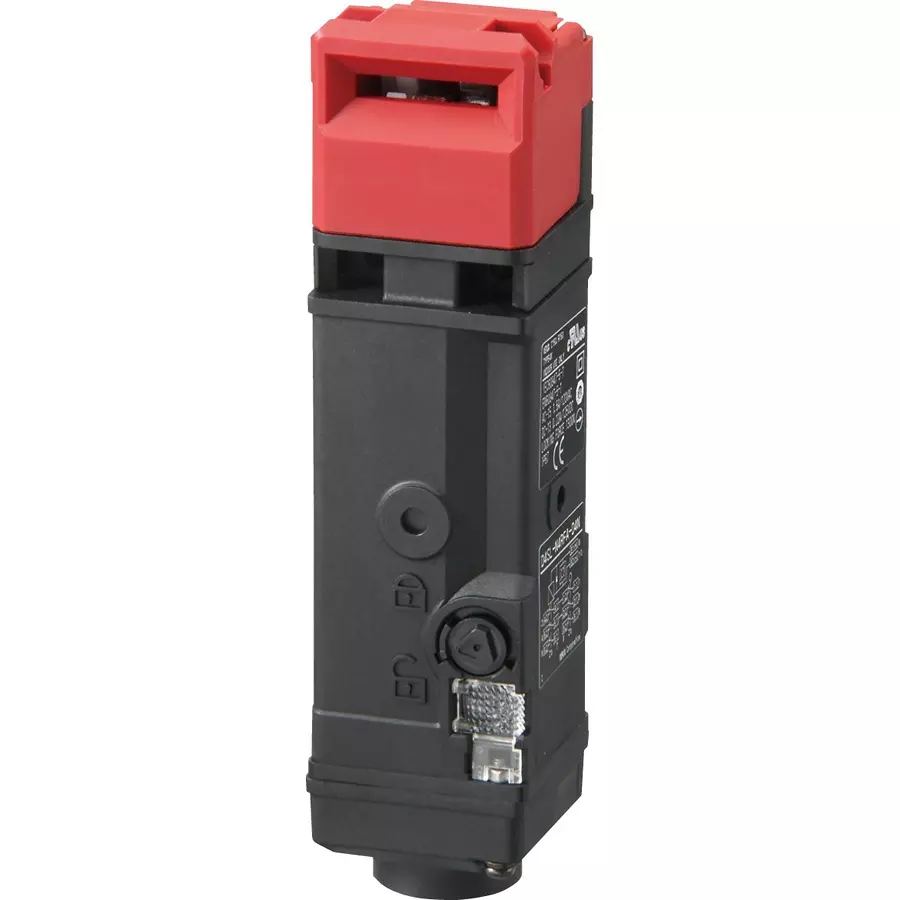

| Type of Product | Key-Operated Door Switch |
Connection Type |
Terminal Block |
Protection Class |
IP67, TYPE 4X Indoor Use Only (UL, CSA) |
Weight |
About 410 g |
Type of Product |
Key-Operated Door Switch |
Model No |
D4SL-N2GDG-D |
Series |
D4SL-N Series |
Monotaro ID |
66464037 |
Conduit Size |
G1/2 |
Type |
Interlock: Type 2 (EN Iso 14119), Coding Level: Low Level Coded (EN Iso 14119) |
Head Material |
Metal |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Insulation Resistance |
100 or More (with 500 V DC Mega) |
Contact Resistance |
200 mΩ or Less |
Operation Ambient Temperature |
-10 to 55°C (No Icing) |
Rated Frequency (Hz) |
50/60 Hz |
Rated Insulation Voltage (V) |
150(EN60947-5-1) |
Vibration Resistance (Malfunction) |
10~55 Hz One Amplitude 0.35 mm |
Shock Resistance (Malfunction) |
80 m/s²or More |
Mechanical Durability |
1,000,000 Times or More |
Rated Impulse Withstand Voltage (kV) |
(EN60947-5-1) Between Terminals Of The Same Polarity: 1.5 kV, (EN60947-5-1) Between Terminals Of Different Polarities: 1.5 kV, (EN60947-5-1) Between Each Terminal And Non-Current-Carrying Metal Parts: 2.5 kV |
Allowable Operating Speed |
0.05 - 1 m/s |
Electrical Durability |
150,000 Times or More (at 125 V AC, 1 A Resistance Load) |
Electric Shock Protection Class |
Class II (Double Insulation) |
Minimum Applicable Load |
5 V DC 1 Ma Resistance Load (N Level Reference Value) |
Operating Force |
(Direct Opening) Minimum 60N (EN60947-5-1) |
Rated Voltage (V) |
24 V DC |
Import Country |
Direct Import from Japan |
Built in Switch |
3NC+1NC/1NO |
