Ships within 19 days
View
View
View
View

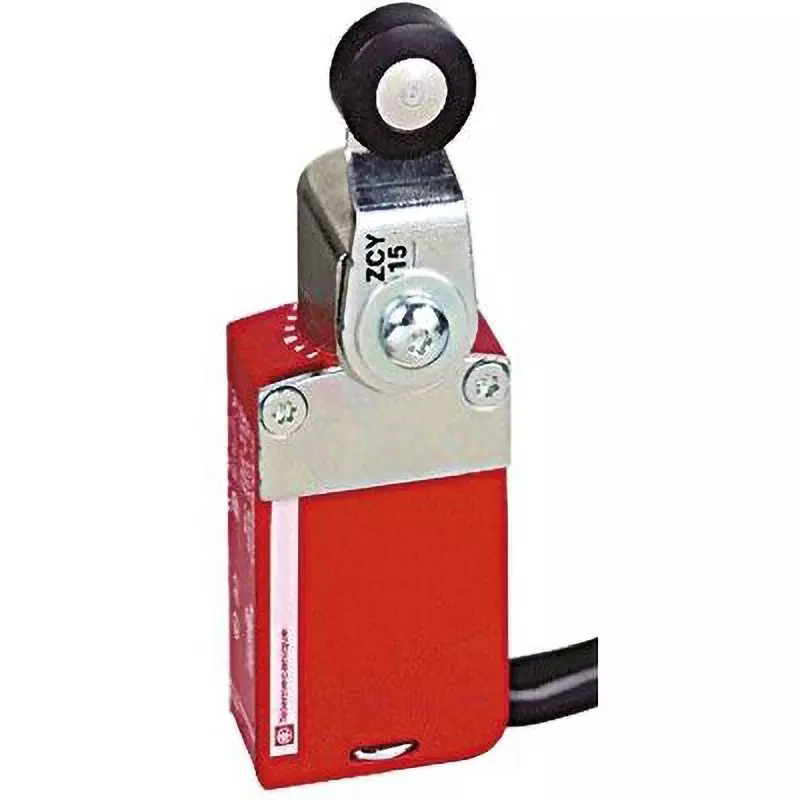

| Type of Product | Safety Switch |
| Model No | XCSM4115L1 |
| Housing Material | Metal |
| Connector | cable |
Type of Product |
Safety Switch |
Model No |
XCSM4115L1 |
Housing Material |
Metal |
Connector |
cable |
Series |
xCSM |
Monotaro ID |
48723703 |
RoHS Directive |
Correspondence |
Width (mm) |
30 |
Constitution |
(Normal condition) 2NO / 2NC |
No. of Contacts |
4 |
Actuator Type |
Rotary Lever |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TELEMECANIQUE SENSORS |
Import Country |
Direct Import from Japan |
Specifications |
Complies with CSA C22-2 No 14, EN 1088, EN / IEC 60204-1, EN / IEC 60947-5-1, UL 508. UL, CSA. With the proper monitoring system, and properly wired, these switches are Safety Category 4 according to EN / ISO 13849-1, PL e according to EN / ISO 13849-1, EN / IEC 61508. Meets SIL 3 requirements to comply with XCSM series, safe limit switches. Schneider's XCSM series miniature / small industrial limit switches are used with actuator-driven guard switches to monitor access doors and guards on low and high inertia machines. Designed for When used alone, always use "positive mode". When combining in pairs, attach one switch in "positive mode" and the other switch in "negative mode". There are linear motion (plunger) or rotary motion (lever). NC contact (reliable opening operation) Snap-action contact Miniature / small red metal housing, cable mounting Plastic protective cover, fixed with 5-lobe socket head safety screw ) Head Linear action switch (plunger) with continuous approach only Protection class IP66 / 67 compliant with EN / IEC 60529 |
Movement |
snap |
Pole / Throw Setting |
4 poles |
