| Type | Preset type |
| Country of Origin | Japan |
| Included Components | + Bit: No.0, No.1 (dedicated collet chuck type bit)x1 |
| Application | General tightening work |
Type |
Preset type |
Country of Origin |
Japan |
Included Components |
+ Bit: No.0, No.1 (dedicated collet chuck type bit)x1 |
Application |
General tightening work |
Type of Product |
Kanon Adjustable Torque Screwdriver |
Model No |
CN30LTDK |
Monotaro ID |
2015027 |
Name of Manufacturer/Packer/Importer |
Nakamura Manufacturing Co., Ltd. |
Shank Diameter (Φmm) |
3.5 |
Overall Length (mm) |
107 mm (no bit) |
Trusco Part No. |
126-4834 |
RoHS Directive |
Correspondence |
Mass (g) |
57 |
Import Country |
Direct Import from Japan |
Load direction |
Right |
Minimum Scale (Nm) |
0.2 |
Accuracy (%) |
±3 |
Bit Total Length (mm) |
45 |

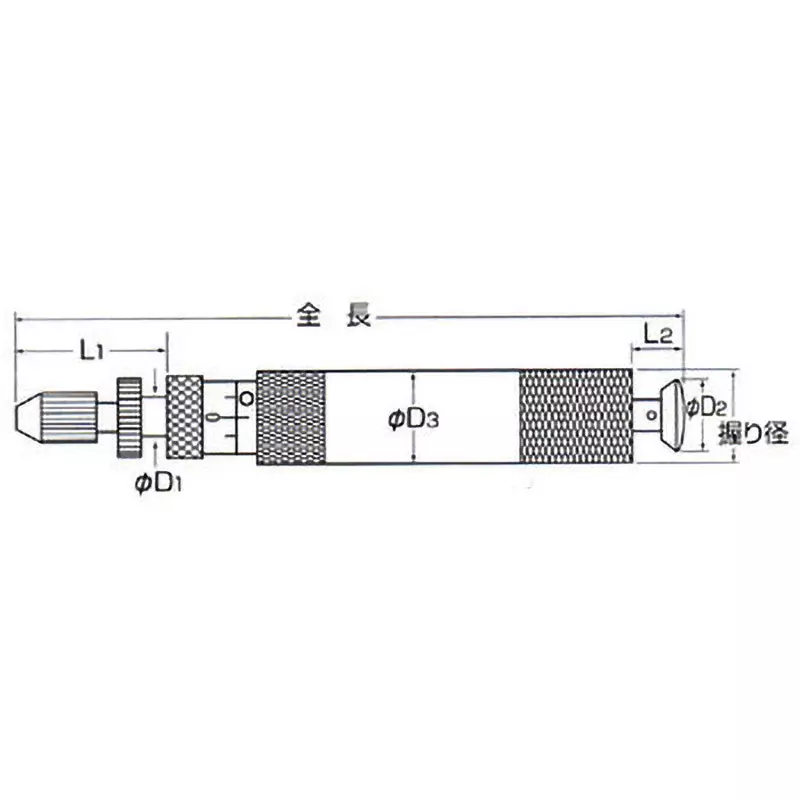

Dimension d2 (Φmm) |
14.4 |
Dimension d1 (Φmm) |
5.5 |
Dimension d3 (Φmm) |
15.5 |
Torque Adjustment Range (cNm) |
2 to 30 |
Dimension L1 |
22 mm |
Dimension L2 |
10.5 mm |
Grip Diameter |
Φ16.3 mm |
