| Model No | BRT2 P-63 |

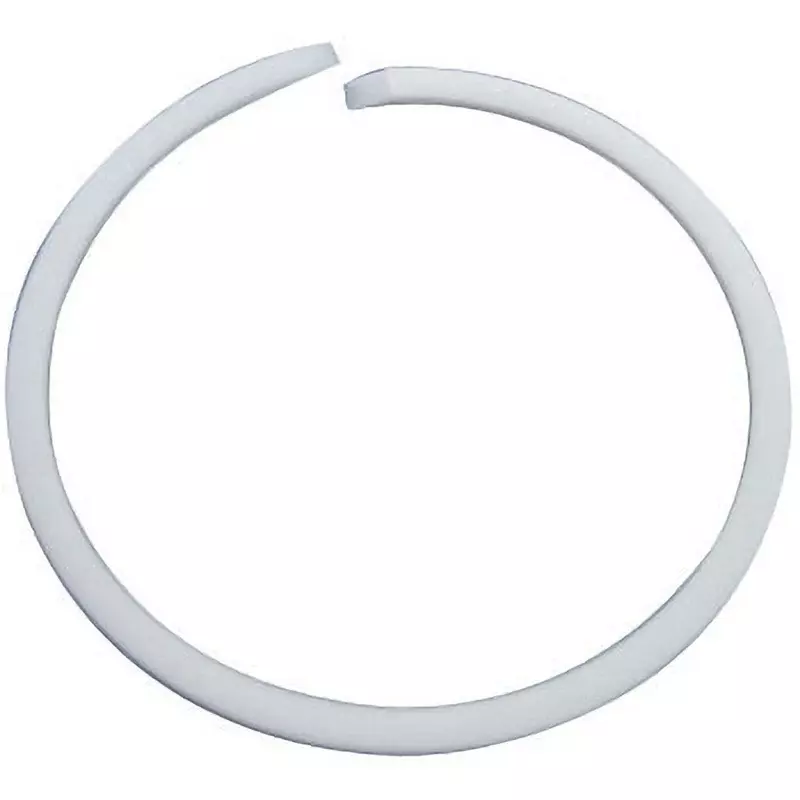

| Type of Product | OR Backup Ring BRT2 Type |
| Part No | GN0531A0 |
| Country of Origin | Japan |
Model No |
BRT2 P-63 |
Type of Product |
OR Backup Ring BRT2 Type |
Part No |
GN0531A0 |
Country of Origin |
Japan |
Shape |
Bias cut |
Monotaro ID |
37991335 |
Name of Manufacturer/Packer/Importer |
NOK Corporation |
How to Use |
When pressure is applied from both sides, attach it to both sides of the O-ring, and when pressure is applied from one direction, attach it to the opposite side of the pressure. |
Thickness t (mm) |
1.9±0.13 |
Nominal Size |
P63 |
Outer Diameter D (Φmm) |
73 |
Inner Diameter d (Φmm) |
63 |
Import Country |
Direct Import from Japan |
