| Weight | 1.400 Kg (3.086 lb) |
| Material | High Carbon Chrome Steel |
| Model No | M1-607236 |
| Type of Product | Inner Ring |
Weight |
1.400 Kg (3.086 lb) |
Material |
High Carbon Chrome Steel |
Model No |
M1-607236 |
Type of Product |
Inner Ring |
Series |
M1 Series |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Mechanical Solutions |

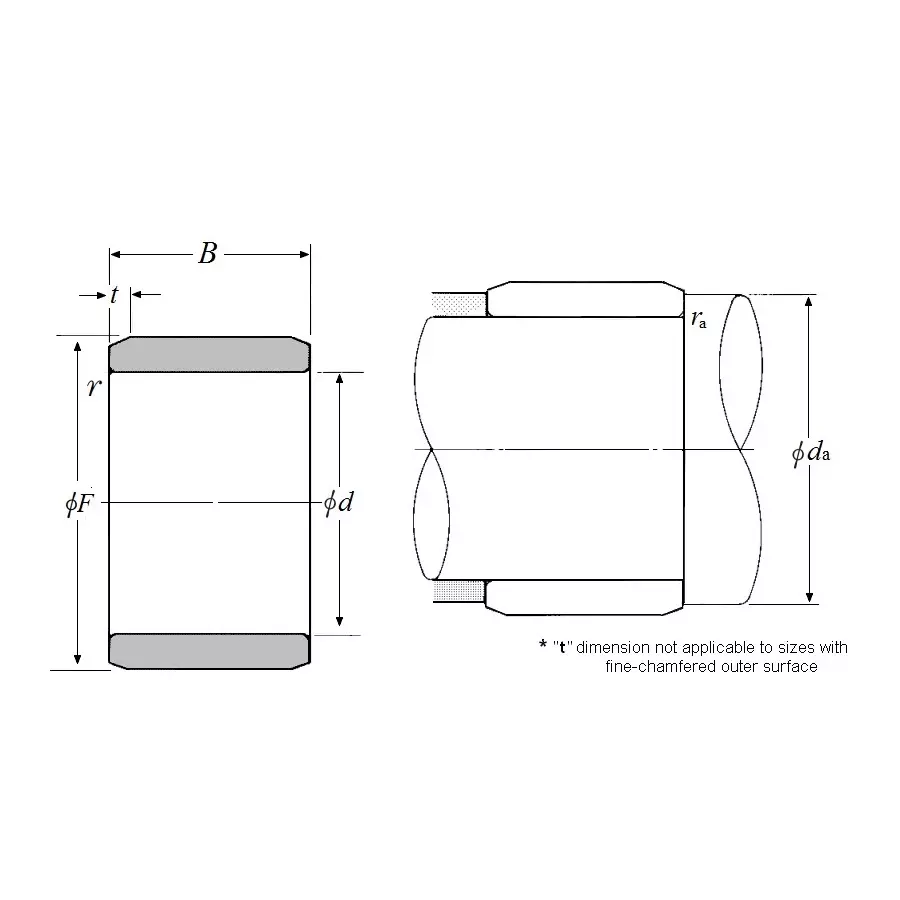

Chamfer Radius (r) |
2.5 mm (0.0984 inch) |
Ring Thickness (t) |
2.5 mm (0.0984 inch) |
Bore Diameter (d) |
95.25 mm (3.75 inch) |
Raceway Diameter (F) |
114.3 mm (4.5 inch) |
Minimum Shaft Shoulder Diameter (da min) |
104. mm (4.0945 inch) |
Maximum Chamfer Radius (ras max) |
2.5 mm (0.0984 inch) |
Precision |
ISO Class 0 (RBEC 1) |
Bore Type |
Round |
Bearing Type |
Needle Roller Bearing Inner Ring |
Tolerance Class |
ISO Class 0 (RBEC 1) |
Width (B) |
57.4 mm (2.2598 inch) |
Surface Finish Type |
Precision Ground |
Heat Treatment |
Hardened |
