| Contact Configuration | 2C Contact |
| Withstand Voltage | Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
| Protection Class | IP65 |
| Monotaro ID | 38978877 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Contact Configuration |
2C Contact |
Withstand Voltage |
Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
Protection Class |
IP65 |
Monotaro ID |
38978877 |
Storage Temperature |
-25 to 65℃ |
Type of Product |

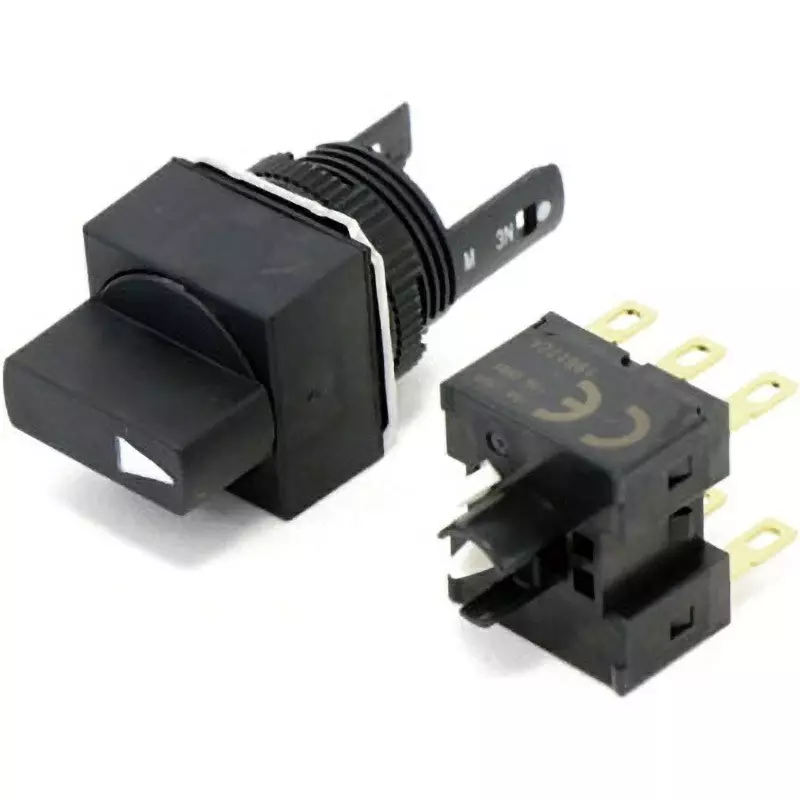

Selector Switch |
Type |
Knob-type selector switch (separate type) |
Operation Type |
selector |
Ambient Humidity to Use |
35 to 85%RH |
Light Source |
Nonilluminated |
Shock Resistance |
Up to 500 m/s² |
Country of Origin |
Japan |
Terminal Type |
Solder terminal |
Import Country |
Direct Import from Japan |
Number of Notches |
3 |
Type of Illumination |
Non-illuminated |
Rated Voltage (V) |
Switch section: AC 125/AC 250/DC 30 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
A165S-A3M-2 |
Operation Ambient Temperature (°C) |
-10 to 55 (no freezing or condensation) |
Contact Resistance (ohm) |
100 or less (initial value) |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
