Ships within 25 days
View
View
View
View
| Material | High Carbon Steel |
| Type of Product | Self-Aligning Ball Bearing |
| Model No | 1217K |
| Mass (g) | 2070 |
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearing |
Model No |
1217K |
Mass (g) |
2070 |
Load direction |
Radial |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |

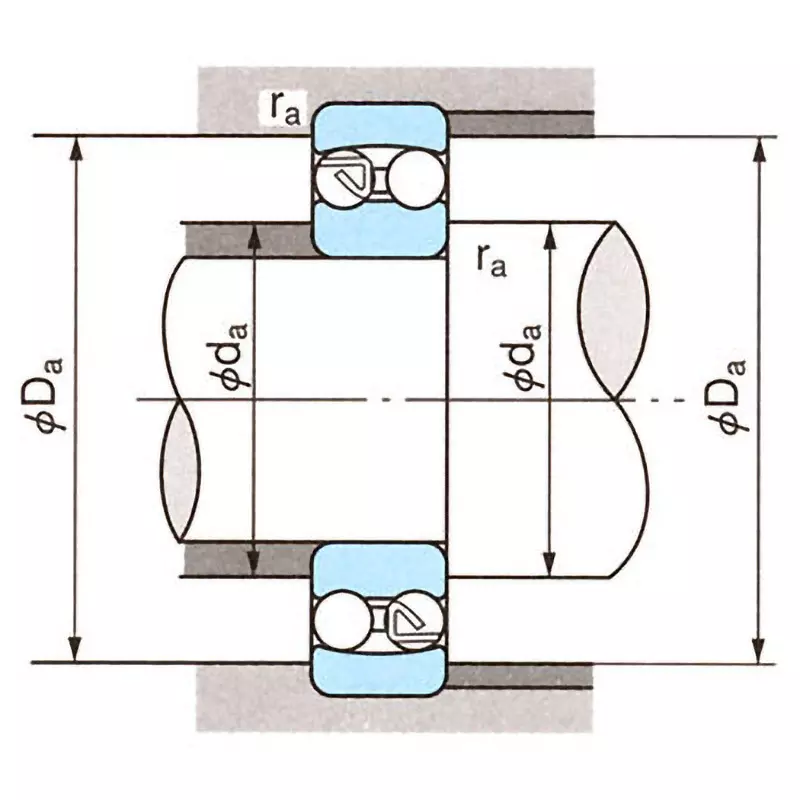

Mounting Dimension, Maximum ra (mm) |
2 |
Mounting Dimension, Maximum Da (Φmm) |
141 |
Mounting Dimension, Minimum da (mm) |
94 |
JIS grade |
0 |

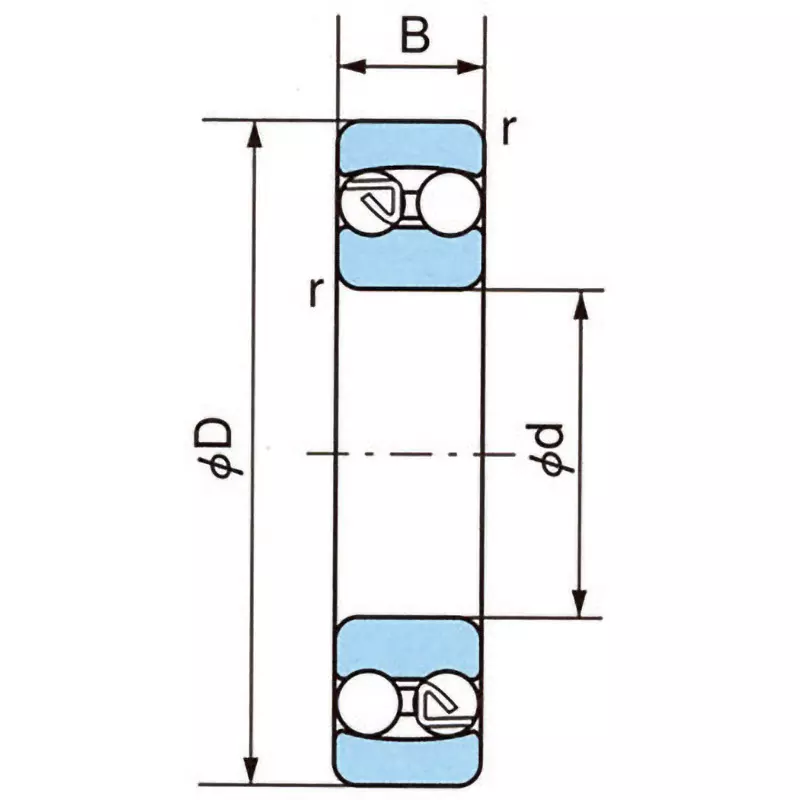

Width B (mm) |
28 |
Monotaro ID |
68556442 |
Outer Diameter D (Φmm) |
150 |
Basic static load rating Cor (N) |
20800 |
Basic dynamic load rating Cr (N) |
49200 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
2 (minimum) |
Inner Diameter (mm) |
85 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
3800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
4600 |
