Ships within 25 days
View
View
View
View
| Material | High Carbon Steel |
| Type of Product | Self-Aligning Ball Bearing |
| Model No | 2206 |
| Mass (g) | 260 |
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearing |
Model No |
2206 |
Mass (g) |
260 |
Load direction |
Radial |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |

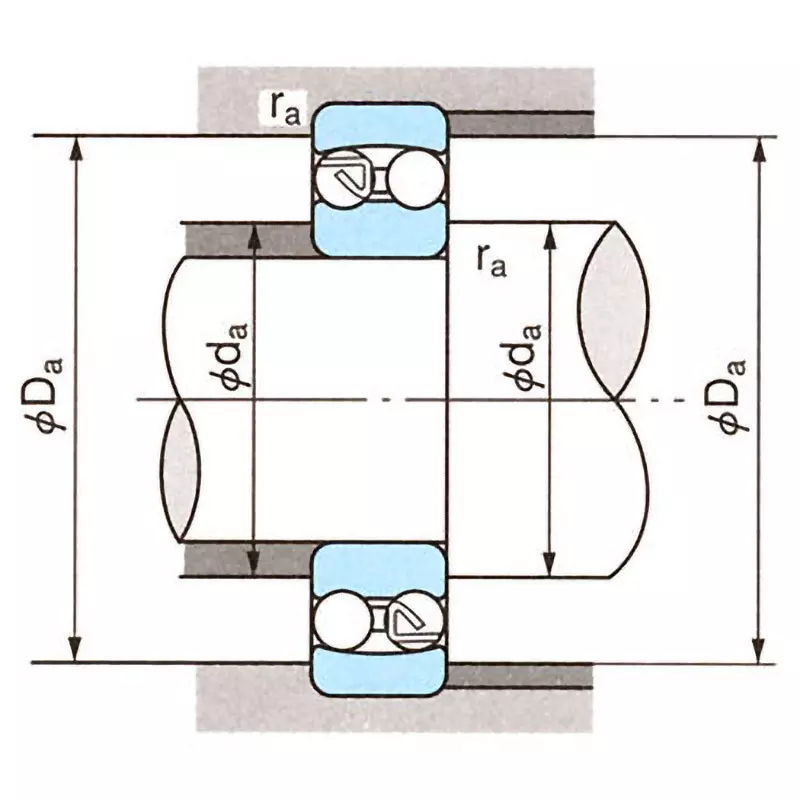

Mounting Dimension, Maximum ra (mm) |
1 |
Mounting Dimension, Maximum Da (Φmm) |
57 |
Mounting Dimension, Minimum da (mm) |
35 |
JIS grade |
0 |

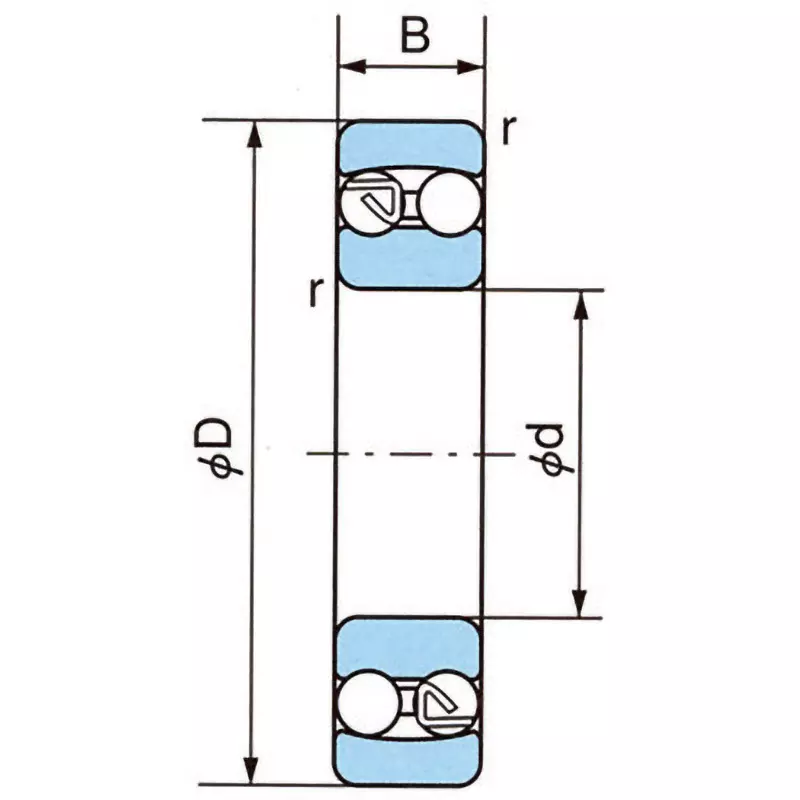

Width B (mm) |
20 |
Monotaro ID |
68556695 |
Outer Diameter D (Φmm) |
62 |
Basic static load rating Cor (N) |
4650 |
Basic dynamic load rating Cr (N) |
15600 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
1 (minimum) |
Inner Diameter (mm) |
30 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
10000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
12000 |
