| Material | High Carbon Steel |

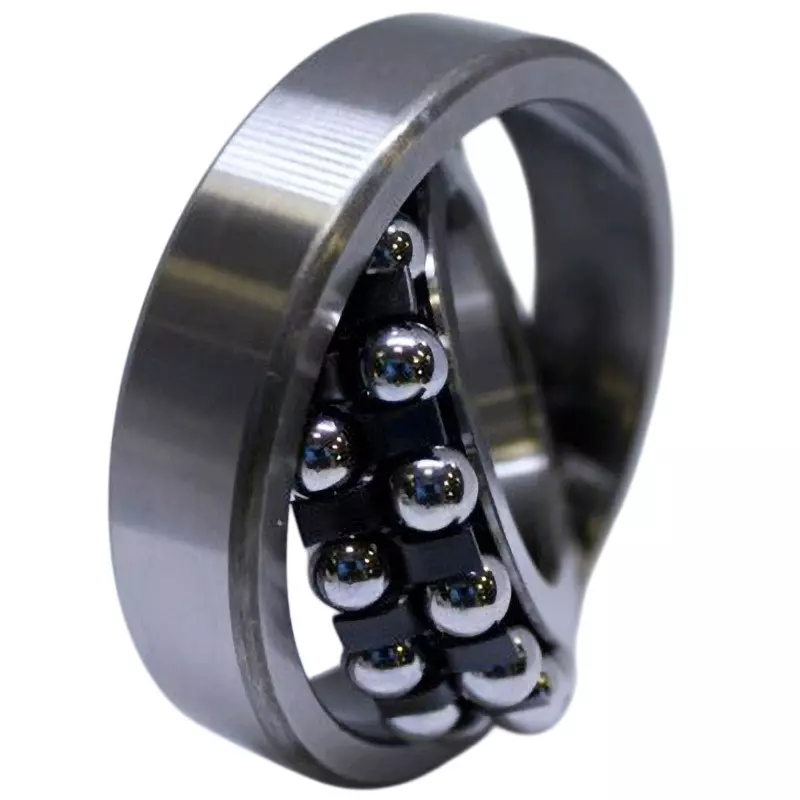

| Type of Product | Self-Aligning Ball Bearings Model 1300 |
| Model No | 1309K |
| Mass (g) | 957 |
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearings Model 1300 |
Model No |
1309K |
Mass (g) |
957 |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Double row |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Width B (mm) |
25 |
Monotaro ID |
47950226 |
Outer Diameter D (Φmm) |
100 |
Basic static load rating Cor (N) |
12700 |
Basic dynamic load rating Cr (N) |
38100 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
1.5 (minimum) |
Inner Diameter (mm) |
45 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
6100 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
7500 |
