| Material | High Carbon Steel |
| Type of Product | Self-Aligning Ball Bearings Model 2300 |
| Model No | 2318 |
| Mass (g) | 7760 |
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearings Model 2300 |
Model No |
2318 |
Mass (g) |
7760 |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Double row |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |
Basic load rating Cr (N) |
154000 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |

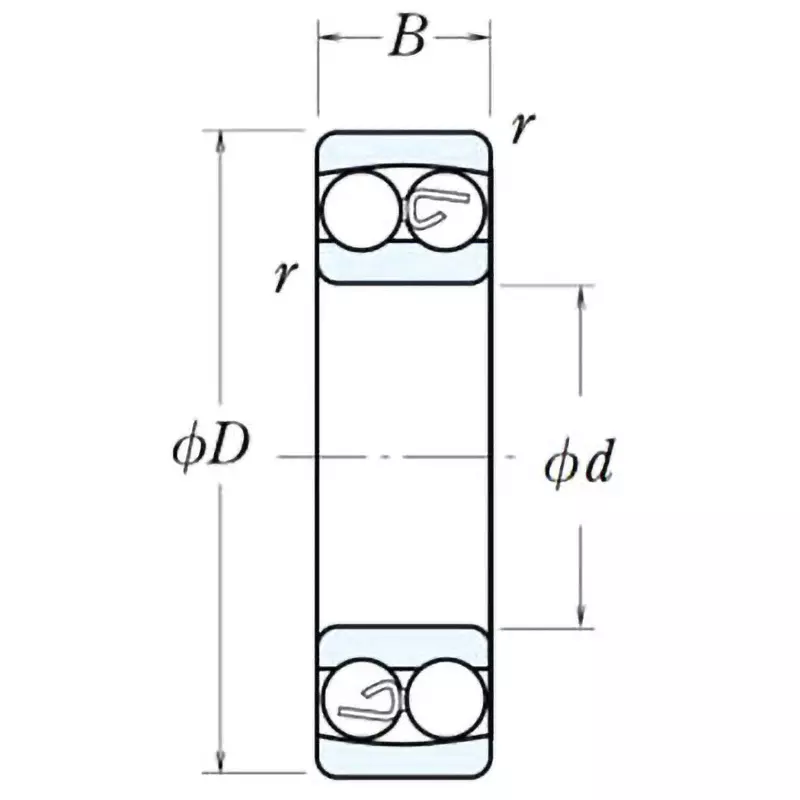

Width B (mm) |
64 |
Monotaro ID |
38376362 |
Basic load rating Cor (N) |
57500 |
Type |
Cylindrical hole |
Outer Diameter D (Φmm) |
190 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
90 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
3600 |
Nominal No. |
2318 |
Dimension R |
(Minimum) 3 mm |
