| Material | High Carbon Steel |

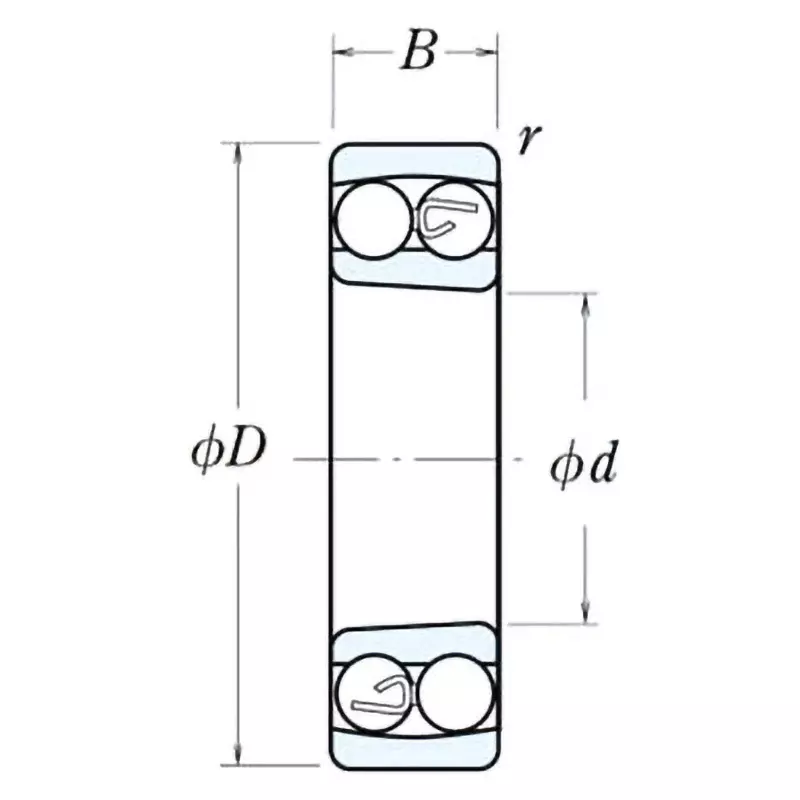

| Type of Product | Self-Aligning Ball Bearing 1200 Type |
| Model No | 1214K |
| Mass (g) | 1300 |
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearing 1200 Type |
Model No |
1214K |
Mass (g) |
1300 |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Double row |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |
Basic load rating Cr (N) |
35000 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Width B (mm) |
24 |
Monotaro ID |
38375267 |
Basic load rating Cor (N) |
13800 |
Type |
Taper hole |
Outer Diameter D (Φmm) |
125 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
70 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
4800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
5600 |
Nominal No. |
1214 |
Dimension R |
(Minimum) 1.5 mm |
