Ships within 25 days
View
View
View
View
| Material | High Carbon Steel |
| Type of Product | Self-Aligning Ball Bearing Open Type 1300 Series |
| Model No | 1318K |
| Mass (g) | 5940 |
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearing Open Type 1300 Series |
Model No |
1318K |
Mass (g) |
5940 |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Double row |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |
Basic load rating Cr (N) |
117000 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |

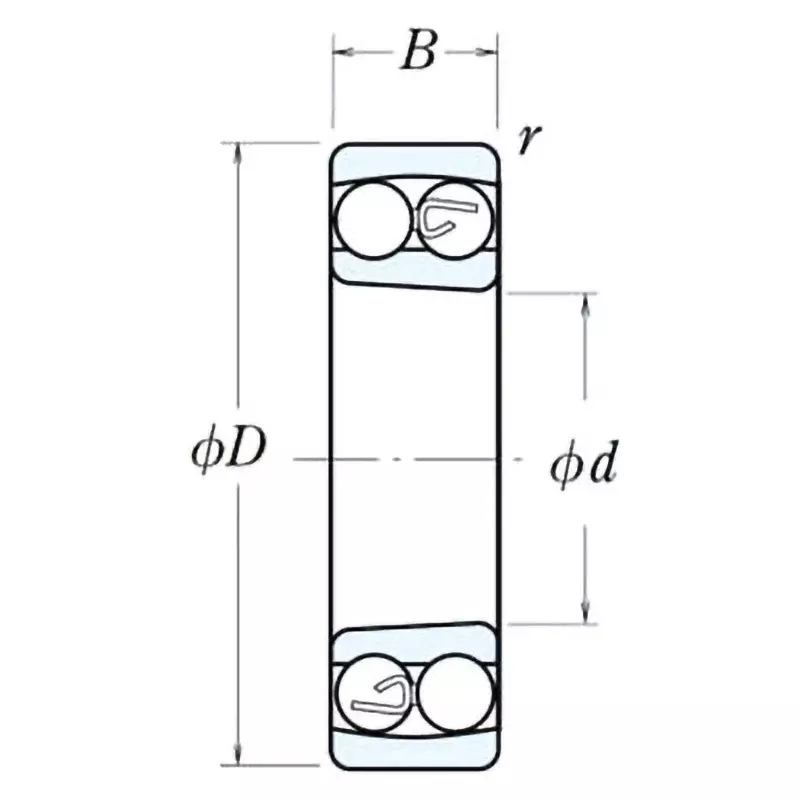

Width B (mm) |
43 |
Monotaro ID |
38375732 |
Basic load rating Cor (N) |
44500 |
Remark |
The ball is on a business trip from the side of the bearing |
Type |
Taper hole |
Outer Diameter D (Φmm) |
190 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
90 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
3200 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
3800 |
Nominal No. |
1318 |
Dimension R |
(Minimum) 3 mm |
