| Type of Product | Self-Aligning Ball Bearing |
| Model No | 2318K |
| Shield Shape | Open type |
| Race ring shape | Self-Aligning Ball Bearings |
Type of Product |
Self-Aligning Ball Bearing |
Model No |
2318K |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |

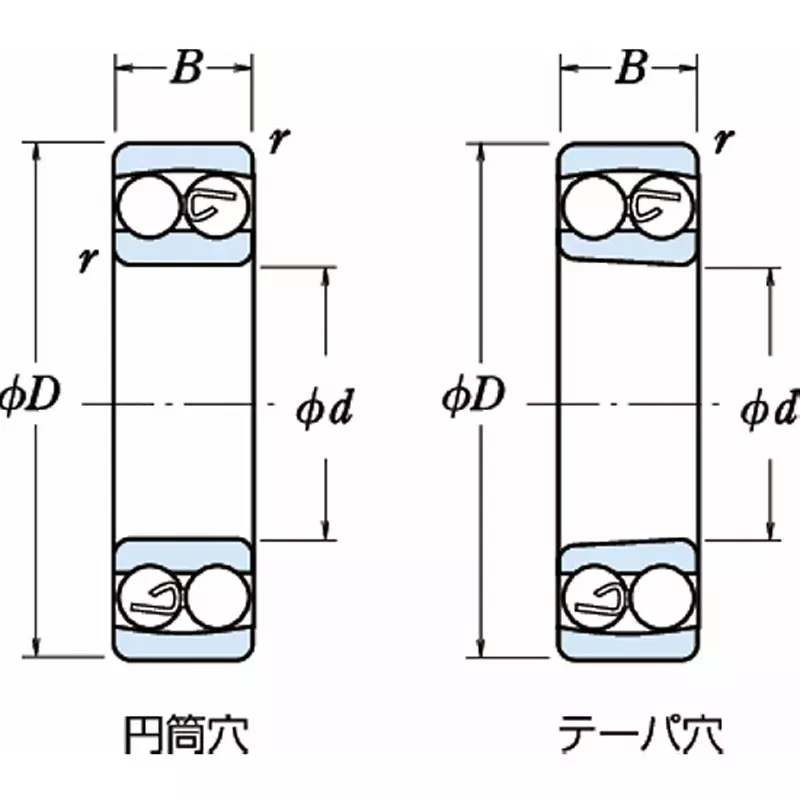

Mounting Dimension, Minimum da (mm) |
103 |
Basic load rating Cr (N) |
154000 |
Width B (mm) |
64 |
Monotaro ID |
12428441 |
Type |
Taper hole |
Outer Diameter D (Φmm) |
190 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
90 |
Nominal No. |
2318 |
Number |
【NSK】2318K |
Mounting Dimensions (mm) |
[ra] Minimum 2.5 |
Mounting Dimension, Minimum Da (Φmm) |
177 |
Dimension R |
[Minimum] 3 mm |
