| Type of Product | Self-Aligning Ball Bearing |
| Model No | 1209 |
| Shield Shape | Open type |
| Race ring shape | Self-Aligning Ball Bearings |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Self-Aligning Ball Bearing |
Model No |
1209 |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |
Mounting Dimension, Minimum da (mm) |
51.5 |
Basic load rating Cr (N) |
22000 |

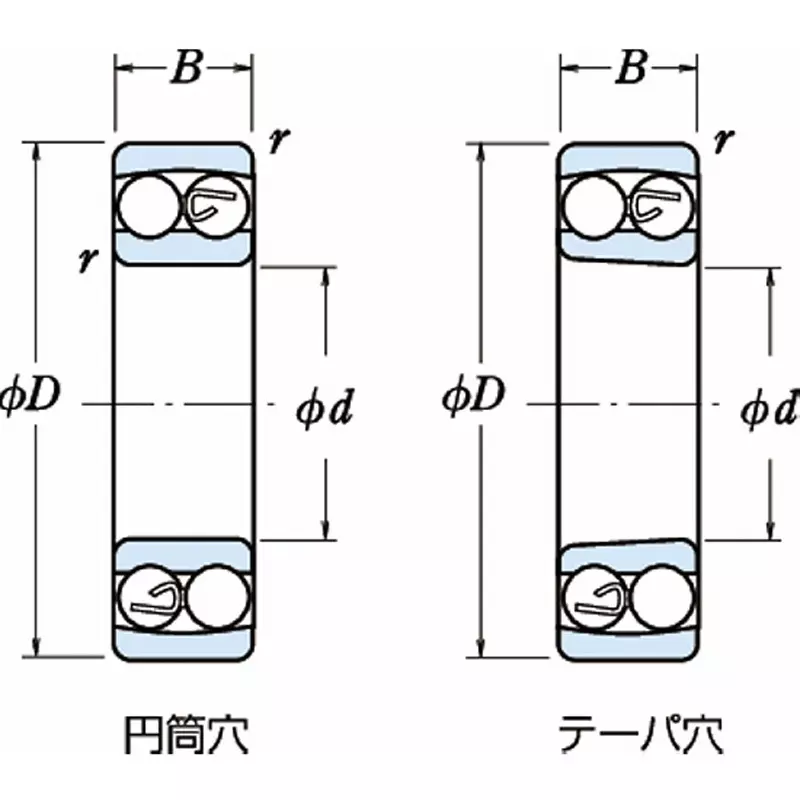

Width B (mm) |
19 |
Monotaro ID |
12421398 |
Type |
Cylindrical hole |
Outer Diameter D (Φmm) |
85 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
45 |
Nominal No. |
1209 |
Number |
【NSK】1209 |

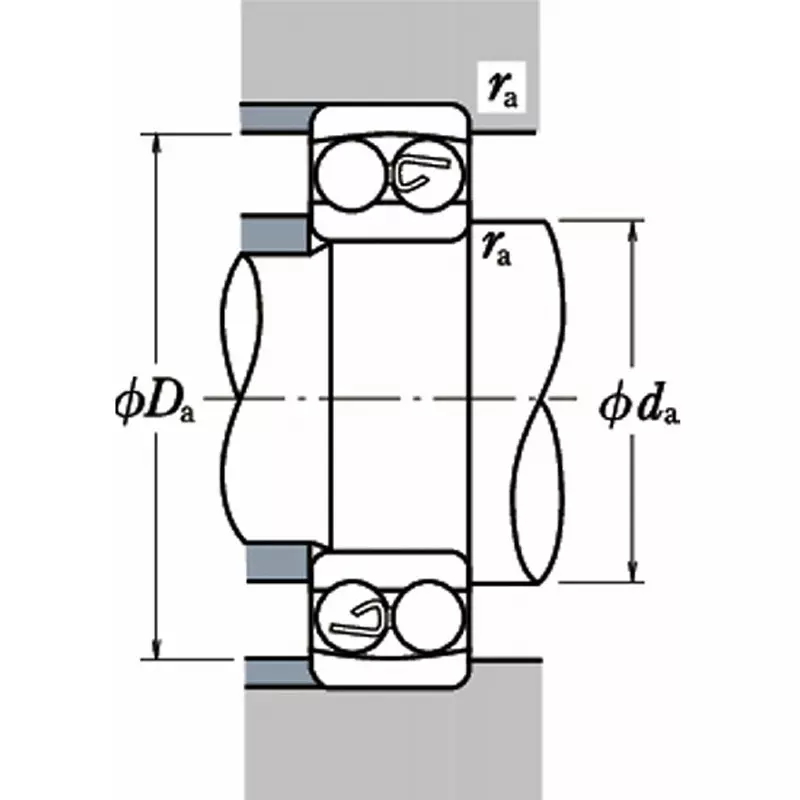

Mounting Dimensions (mm) |
[ra] Minimum 1 |
Mounting Dimension, Minimum Da (Φmm) |
78.5 |
Dimension R |
[Minimum] 1.1 mm |
