| Type of Product | Self-Aligning Ball Bearing |
| Model No | 2309K |
| Shield Shape | Open type |
| Race ring shape | Self-Aligning Ball Bearings |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Self-Aligning Ball Bearing |
Model No |
2309K |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |

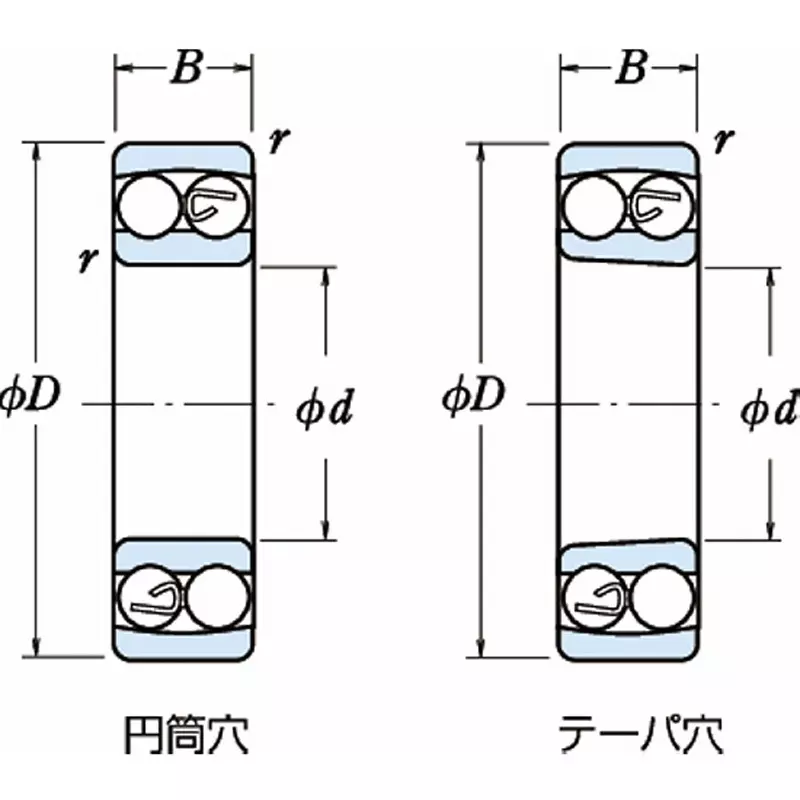

Mounting Dimension, Minimum da (mm) |
53 |
Basic load rating Cr (N) |
55000 |
Width B (mm) |
36 |
Monotaro ID |
12427576 |
Type |
Taper hole |
Outer Diameter D (Φmm) |
100 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
45 |
Nominal No. |
2309 |
Number |
【NSK】2309K |
Mounting Dimensions (mm) |
[ra] Minimum 1.5 |
Mounting Dimension, Minimum Da (Φmm) |
92 |
Dimension R |
[Minimum] 1.5 mm |
