| Type of Product | Self-Aligning Ball Bearing |
| Model No | 2313K |
| No. of Track Trains | 2 rows |
| Shield Shape | Open type |
Type of Product |
Self-Aligning Ball Bearing |
Model No |
2313K |
No. of Track Trains |
2 rows |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |
Mounting Dimension, Minimum da (mm) |
76 |
Basic load rating Cr (N) |
97000 |
Width B (mm) |
48 |
Monotaro ID |
12428285 |
Type |
Taper hole |
Outer Diameter D (Φmm) |
140 |
Reference mass (g) |
3110 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
65 |
Nominal No. |
2313 |
Number |
【NSK】2313K |

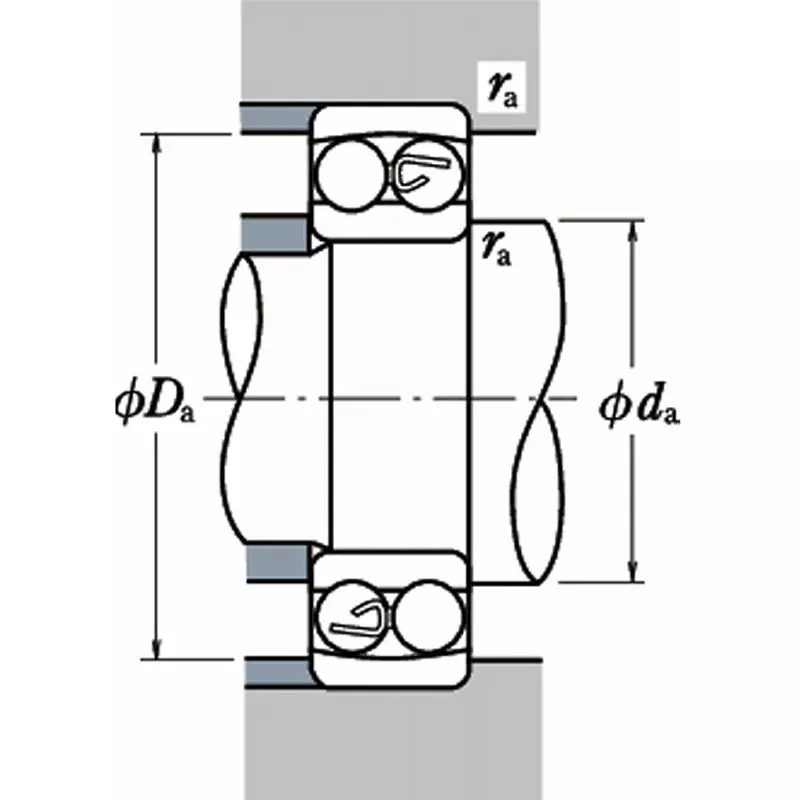

Mounting Dimensions (mm) |
[ra] Minimum 2 |
Mounting Dimension, Minimum Da (Φmm) |
129 |
Dimension R |
[Minimum] 2.1 mm |
Reference Mass (kg) |
3.11 |
